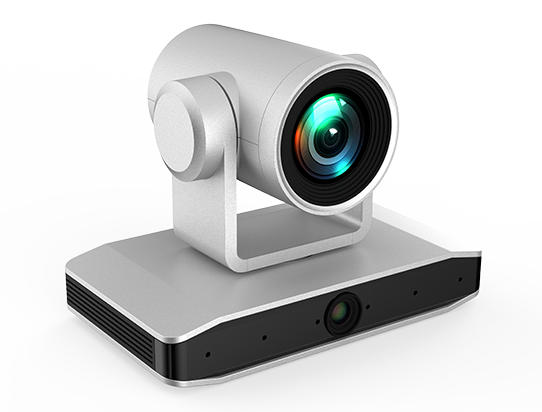

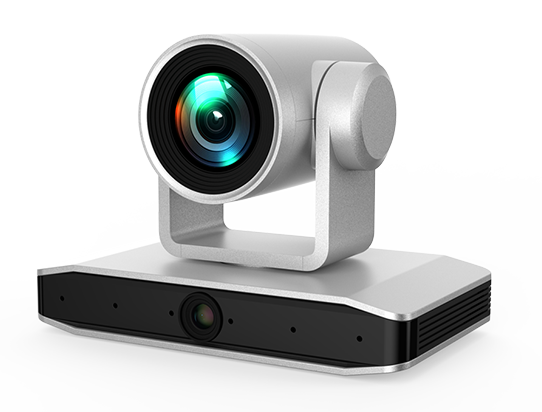

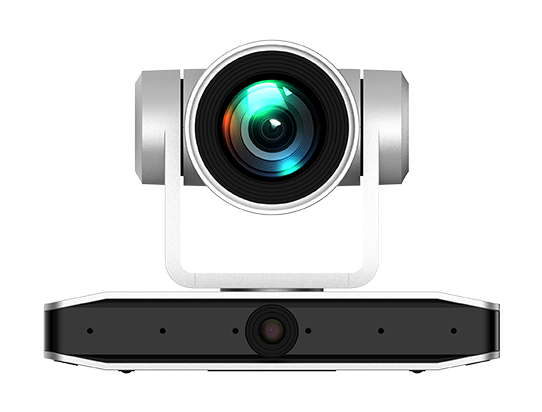

Minrray UV490 integrates panoramic cameras, close-up cameras, and positioning array microphones. Through professional voice positioning and 4K image analysis technology, it realizes accurate automatic tracking, frees the hands of conference personnel, making more engaged communication. It is a perfect choice for medium and large conference rooms.
4K ultra-high-definition image: using 8.5
million pixel high-quality SONY CMOS image sensor, the maximum resolution can
reach 4K (3840×2160), and the 4K output frame rate can reach up to 30 frames per
second.
Optical zoom lens: 12x 80.5° optical zoom
lens.
Leading auto-focusing technology: The
advanced auto-focusing algorithm enables the lens to complete auto-focusing
quickly, accurately and stably.
Low noise and high signal-to-noise ratio: The low-noise CMOS effectively ensures the ultra-high signal-to-noise ratio of
the camera video. Adopt advanced 2D and 3D noise reduction technology to
further reduce noise while ensuring image clarity.
A variety of video output interfaces: support HDMI, USB3.0, wired LAN interface; support POE power supply, USB3.0
supports dual stream.
A variety of audio and video compression
standards: support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats,
MJPEG, H.264, H.265 support up to 3840 × 2160 resolution 30 frames / second
compression; support AAC , MP3, G.711A audio compression.
Audio input interface: support AAC, MP3,
G.711A audio coding, AAC, MP3 coding supports 16000, 32000, 44100, 48000
sampling frequency.
Multiple network protocols: support ONVIF,
GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols; support
RTMP push mode, easily link streaming media servers (Wowza, FMS); support RTP
multicast mode .
Multiple control protocols: support VISCA,
PELCO-D, PELCO-P protocols, and support automatic identification protocols.
Low-power sleep function: supports
low-power sleep/wake-up, and the power consumption during sleep is less than
400mW.
AI binocular humanoid tracking: Built-in
high-speed processor and exclusive advanced image processing and analysis
algorithms, users can choose real-time tracking and regional tracking according
to the usage environment.
Intelligent voice positioning and tracking: Built-in 6 omnidirectional microphone arrays, intelligent voice positioning
algorithm, can locate the position of the speaker in real time, and can set
voice tracking on/off
| Model | UV490D2 | ||
| 4K Intelligent Dual-Lens PTZ Camera | |||
| Image Sensor | 1/2.8 inch SONY CMOS image sensor | ||
| Effective Pixel | 8.51M，16:9 | ||
| Viewing Angle | H：7.6°（N）～80.5°（W） | ||
| Iris Value | F1.8 ～ F3.6 | ||
| Focus | f＝3.4～40.3mm | ||
| Video Format | HDMI | ||
| 4KP30, 4KP25, 1080P30, 1080P25, 1080P29.97 | |||
| SDI | |||
| 1080P30, 1080P25, 1080P29.97 | |||
| USB3.0 | |||
|
Main Stream：YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360/480×270/320×180@10/5fps; MJPG/H264：3840*2160/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/ 640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
|||
|
Sub Stream：YUY2/NV12：1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps; MJPG/H264：1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/ 352×288/320×240@30/25/20/15/10/5fps |
|||
| Optical Zoom | 12x | ||
| Digital Zoom | 15x | ||
| Panoramic Lens | FOV | 110.2°\101.8°\69.5°（D\H\V） | |
| Iris | F2.0±5% | ||
| Focus | F=1.89mm | ||
| Mics | 6 mics arrays with 6 meter audio range | ||
| AI | Smart Framing | Group Framing, Face Detection | |
| Voice Tracking | Voice localization, voice tracking on/off | ||

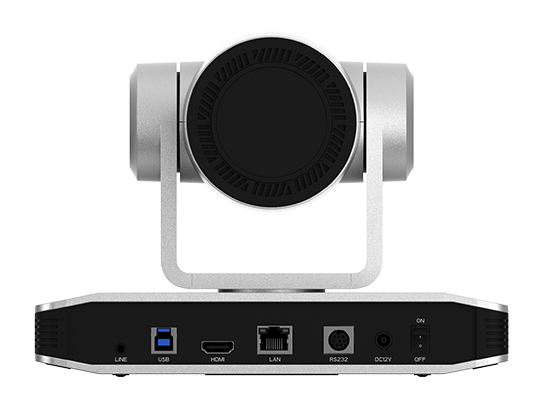

| Back Panel | HDMI、LAN(POE)、USB3.0、A-IN、RS232-IN、DC12V Power Supply、Power Switch | ||
| Accessory | Power adapter, RS232 cable, USB3.0 cable, remote control, user manual | ||
