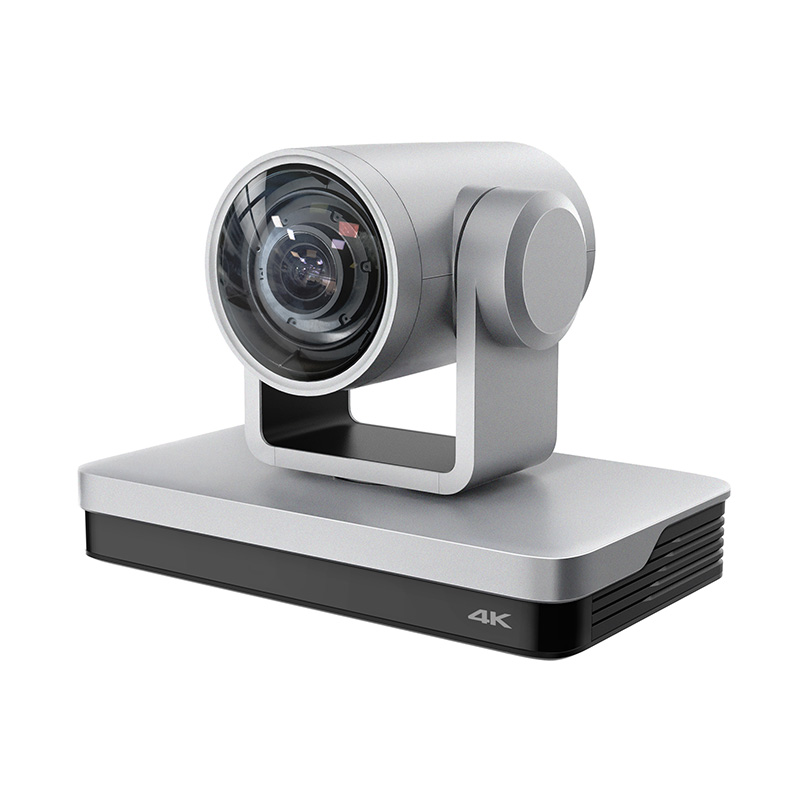

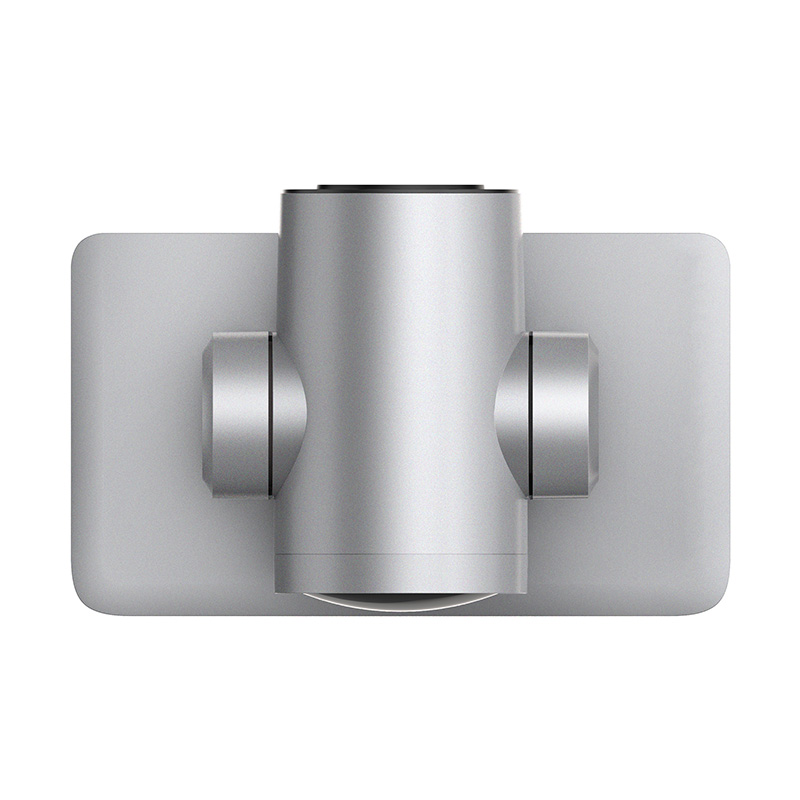

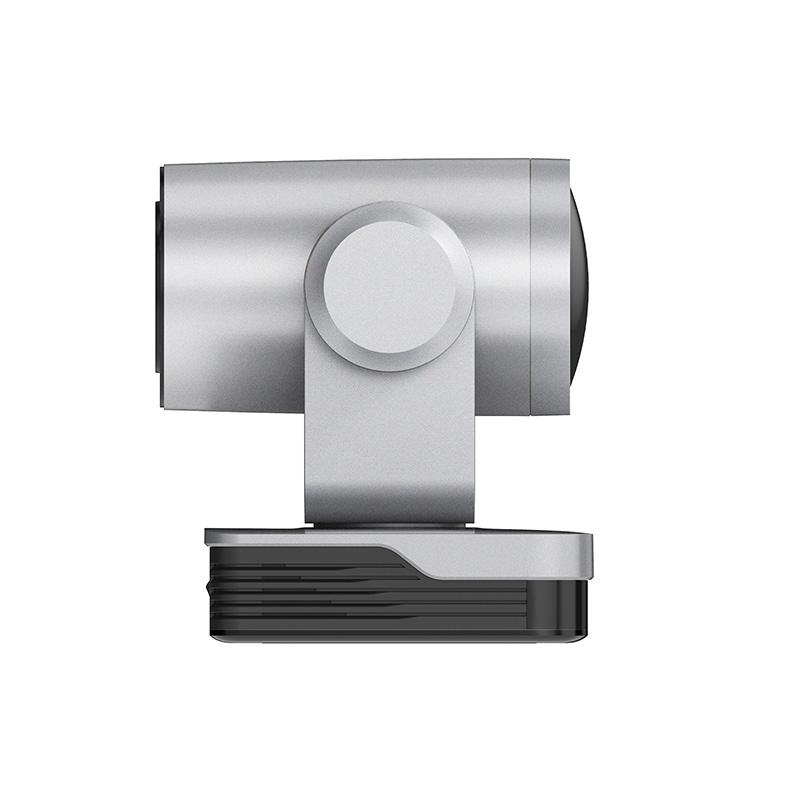

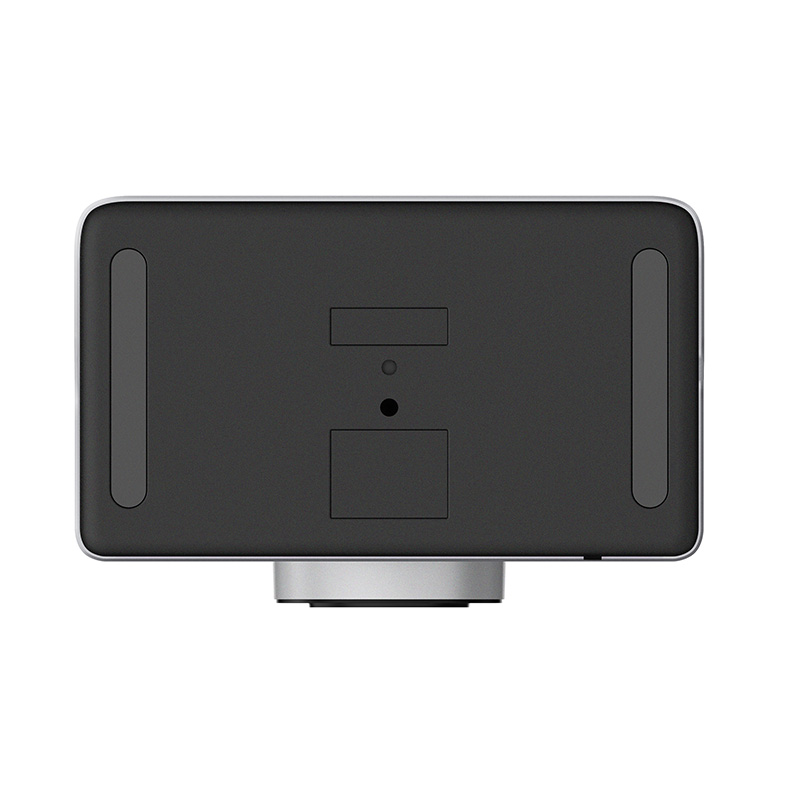

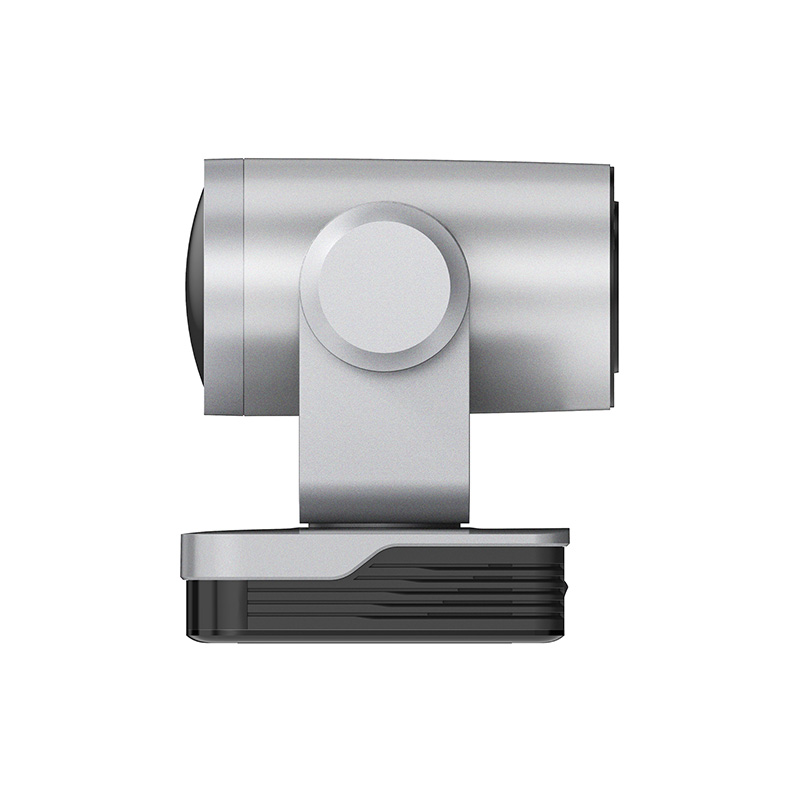

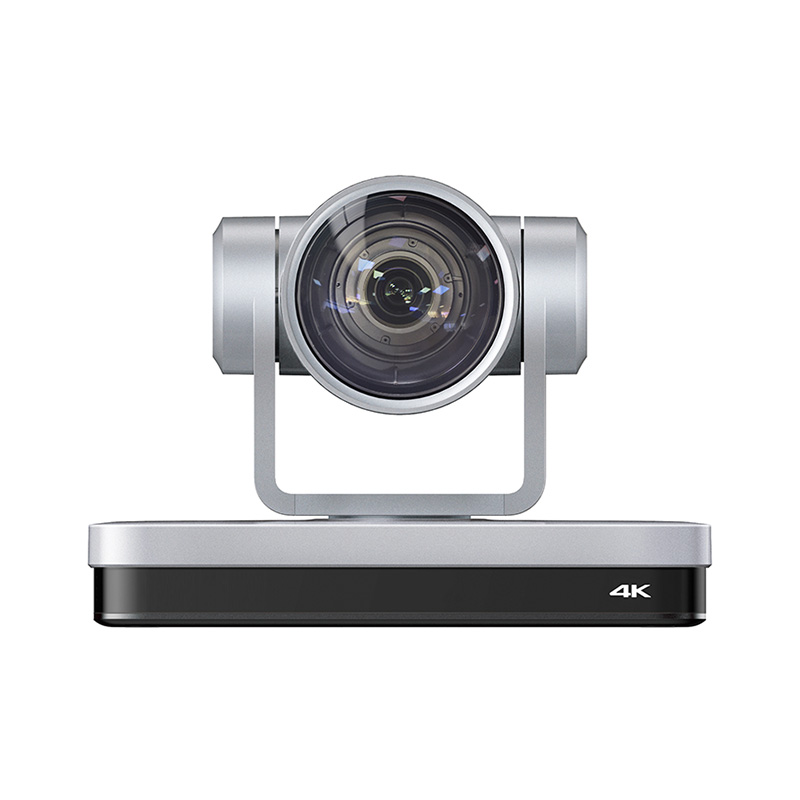

You can rest assured to buy Ultra HD 4K PTZ Camera-UV430A from Minrray factory and we will offer you the best after-sale service and timely delivery.UV430A NDI Camera supports power, video/audio and control, over a single Ethernet cable, simplifying the installation and setup of live streaming systems. It features with USB2.0, HDMI, NDI, multiple standard IP streaming formats. The superior 12x optical zoom lens smoothly and quickly captures every detail even in low light conditions and provides image details without any distortions.
Wholesale low price Ultra HD 4K PTZ Camera-UV430A made in China. Minrray is a Ultra HD 4K PTZ Camera-UV430A manufacturer and supplier in China.
Key Features
|
1. 4K Ultra HD Image: Built with SONY high quality CMOS sensor, ,with resolution up to 4K@60fps.
12x optical zoom lens, with 80.4° FOV without distortion.12X optical zoom 80.4°wide-angle lens (UV430E0), 25X optical zoom 59.2°wide-angle lens (UV430E2), and 31X optical zoom 59° wide-angle lens (UV430E3)
Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.
Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
With video 4k output from HIMI, USB2.0 and LAN at the same time.
Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB2.0 port , support AAC audio compression over A-in port. LAN interface supports H.264/H.265 video compression, USB2.0 interface supports MJPG、H264、YUY2、NV12、H265; A-IN interface supports AAC audio compression coding
7. Multiple Network Protocol |
|
Technical Specification:
| Model | UV430E0 | UV430E2 | UV430E3 |
| 4K PTZ Camera | |||
| Image Sensor | 1/2.5 inch SONY CMOS Image Sensor | 1/1.8 inch SONY CMOS Image Sensor | 1/1.8 inch SONY CMOS Image Sensor |
| Focus | f=3.85 mm～ 43.06 mm ±5% | f=7.1 mm～ 171.95 mm ±5% | f=6.91 mm～ 214.64 mm ±5% |
| Viewing Angle |
H：7.59˚（N）～ 80.4˚（W） V：4.6˚（N）～ 50.0˚（W） |
H：2.5˚（N）～ 59.2˚（W） V：1.4˚（N）～ 34.6˚（W） |
H：1.98˚（N）～ 59˚（W） V：1.12˚（N）～ 34.14˚（W） |
| Iris Value | F1.8 ～ F3.56±5% | F1.61 ～ F5.19±5% | F1.35 ～ F4.6±5% |
| Effective Pixel | 8.51M 16:9 | ||
| Video Signal | HDMI | ||
| 3840*2160P60/50/25/59.94/29.97、1080P60/50/ 30/25/59.94/29.97、1080I60/50/59.94; 720P60/50/59.94 | |||
| SDI | |||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | |||
| USB2.0 | |||
|
MJPG：3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30 H264：3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30 YUY2：800*448 /720*480P25、640*360 /432*240P30 NV12：800*448P25、640*480 /640*360 /432*240P30 |
|||
| Optical Zoom | 12x | 25X | 31X |
| Digital Zoom | 15x | 15x | 15x |
| AI | Real-time Tracking, Zone Tracking | ||

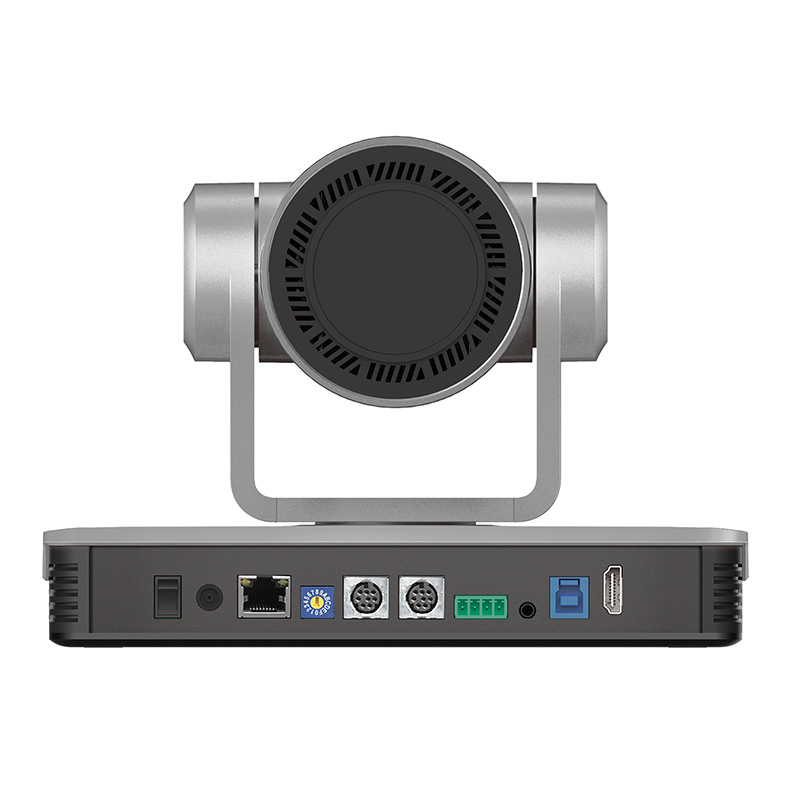

| Back Panel | HDMI、SDI、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、RS422（Compatible with RS485）、Rotary Dip Switch、DC12V Power Supply、Power Switch | ||
| Accessory | Power Adapter, RS232 Cable, USB2.0 Cable, Remote Control, User Manual | ||
