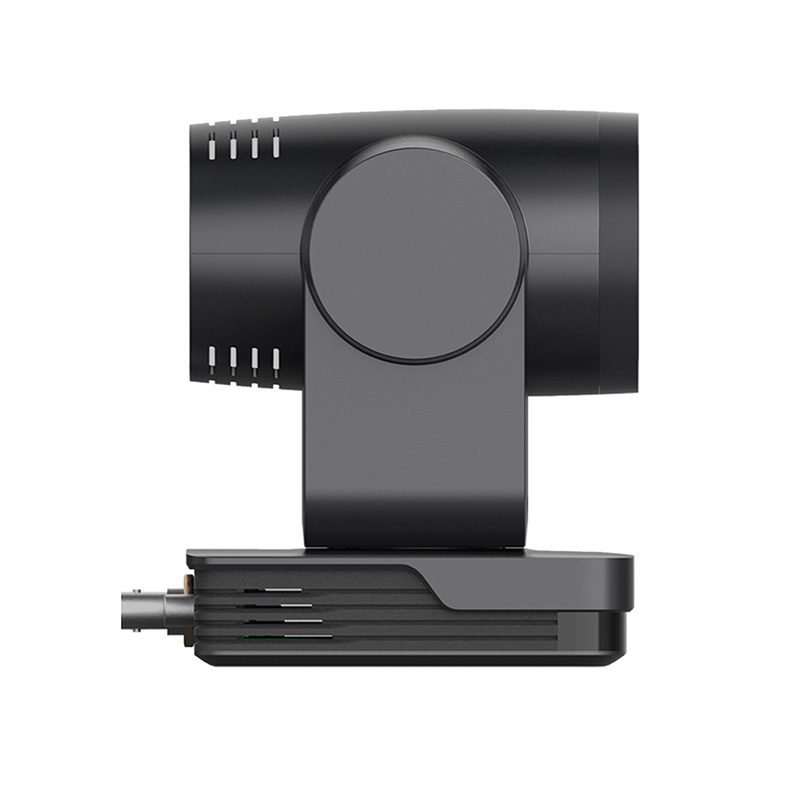

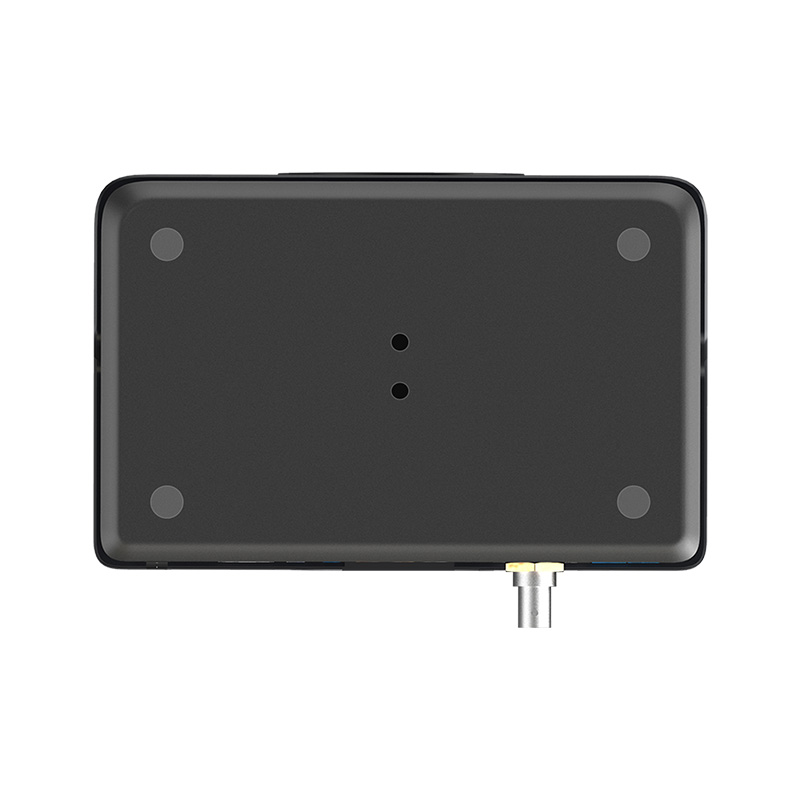

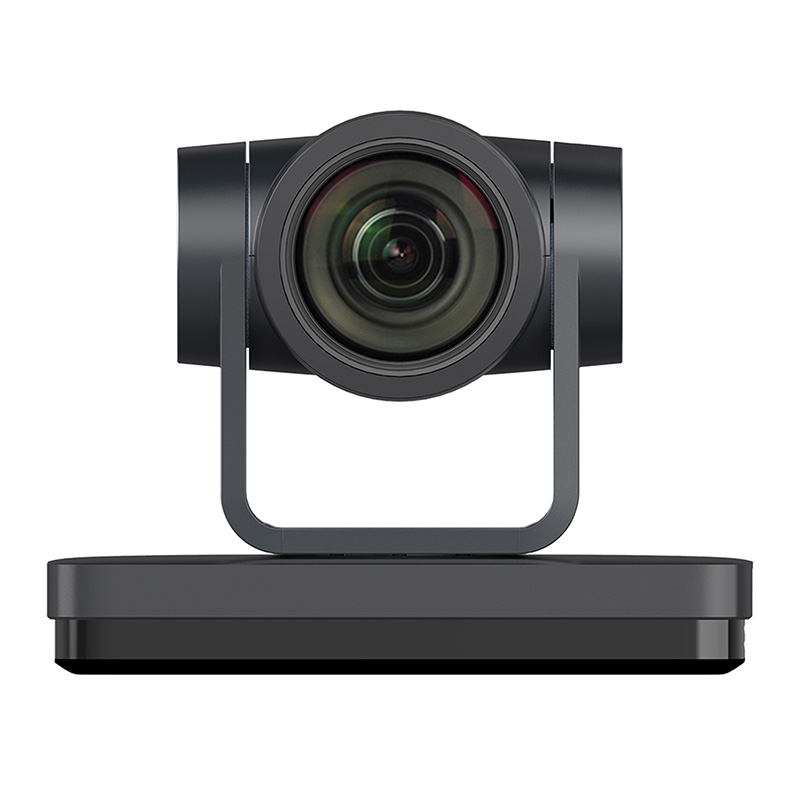

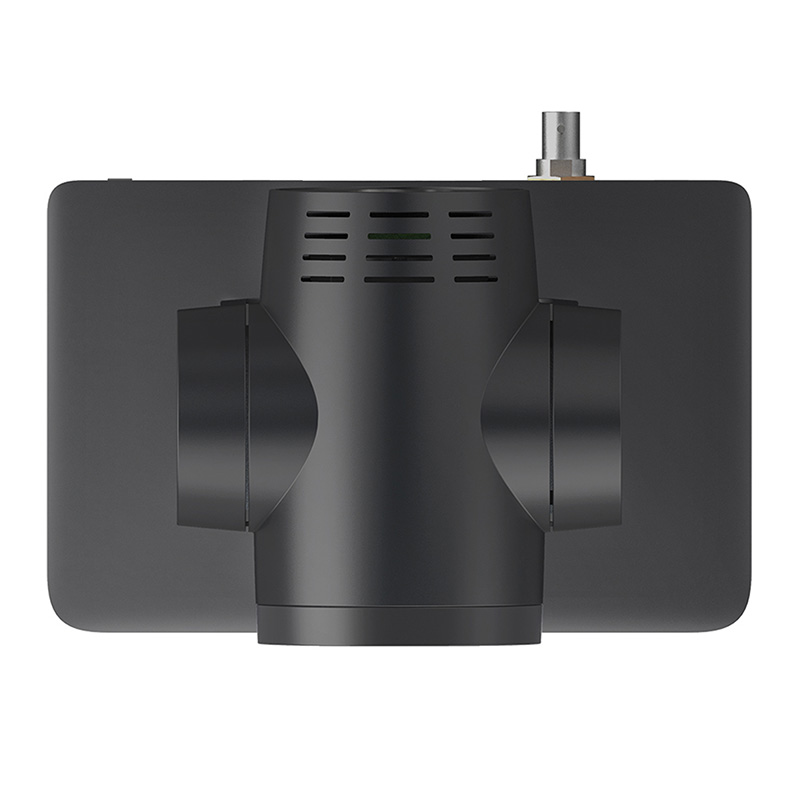

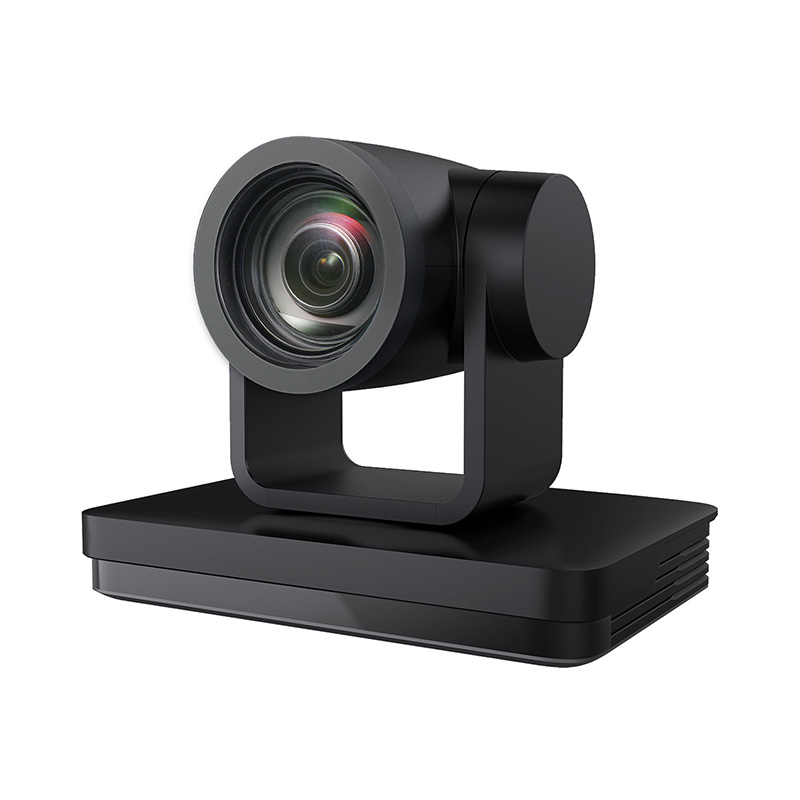

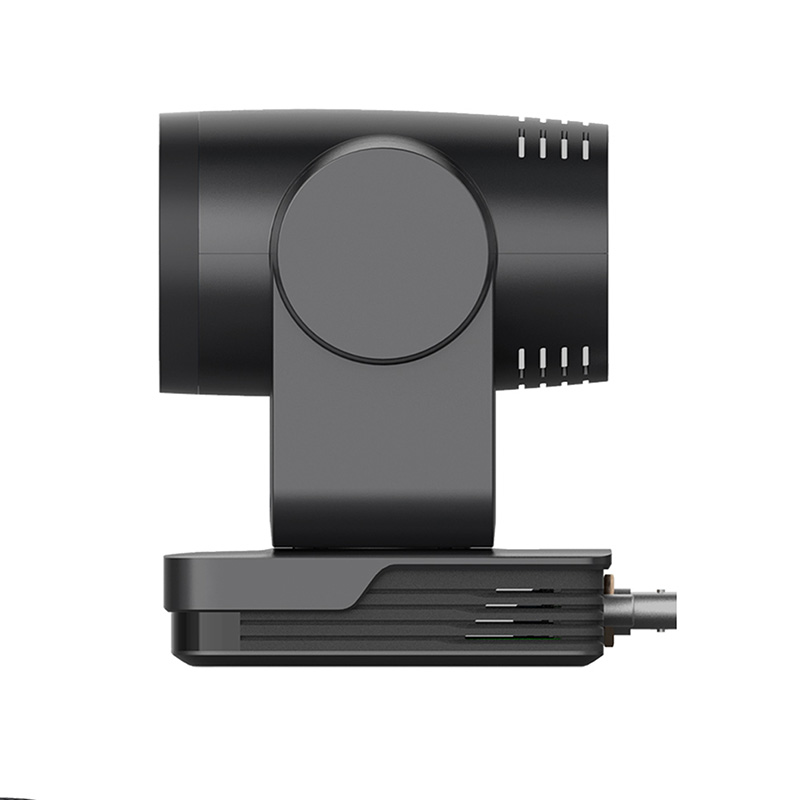

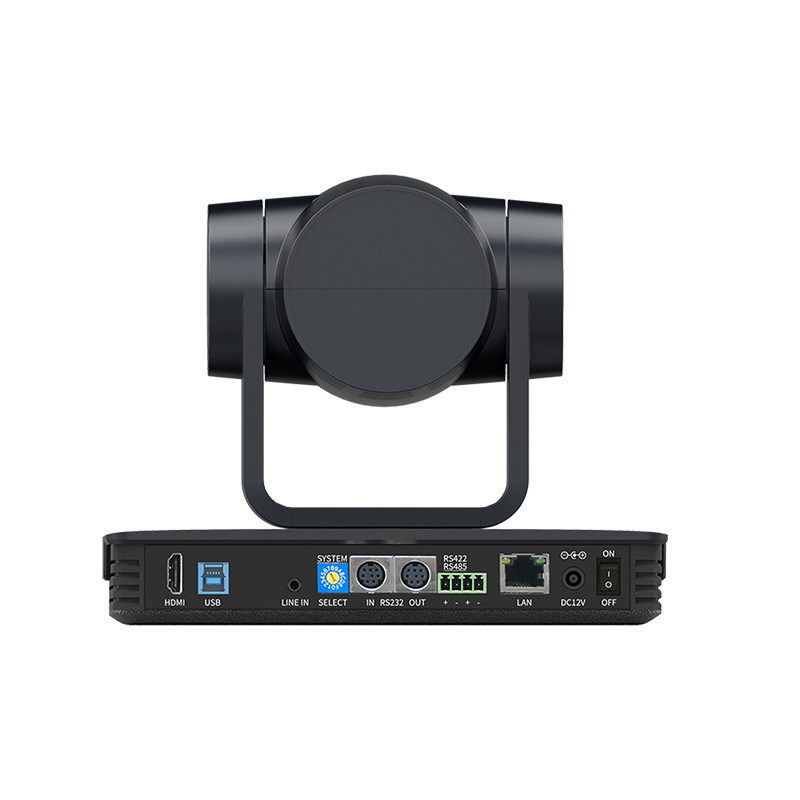

This Live HD PTZ Camera BC570 has perfect functions, superior performance and rich video output interfaces; Featuring with advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition.
Key Features
1. Full HD Resolution:
1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60 fps. High restoration and beautifying effect: It adopts advanced ISP processing technology and algorithm, with good color reproduction and beautifying effect.
2. Optical Zoom Lens:
12X optical zoom lens, 72.5° wide angle with little distortion.
3. Leading Auto Focus Technology:
Fast, accurate and stable auto focusing technology.
4. Low Noise and High SNR:
Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
5. USB3.0 supports dual stream output:
The main stream and sub stream can be output at the same time. Support YUY2, MJPEG, H.264, H.265, NV12 video compression;
6. Support horizontal and vertical screen switching:
USB3.0 output multiple video coding formats, support horizontal and vertical screen switching function.
7. Panoramic and close-up switching:
supports up to 255 presets (10 presets via remote control), and the position of the panoramic or close-up shots can be remembered through the preset position setting. The host can easily complete the live room by one person operating.
8. Quiet Pan / Tilt Movement:
With high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth.
9. Multiple presets:
Up to 255 presets (10 presets via remote control).
Technical Specification
Camera Parameter | |||
Model | BC570T | ||
Focal Range |
12X f=3.9-46.8mm |
||
View Angle |
72.5°(W) 6.3°(T) |
||
Effective Pixels | 16: 9, 2.07 megapixel, 1/2.8 inch high quality HD CMOS sensor | ||
Video Format |
HDMI video format 1080P60/50/30/25, 1080I60/50, 720P60/50 USB3.0 interface video format: Main Stream: YUY2/MJPEG/NV12/H.264/H.265:1920×1080P30,1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 720×480P30, 640×360P30, 640×480P30, 320×176P30, 1080x1920P30 MJPEG/H.264/H.265: 1920×1080P60, 1280×720P60, 1024×576P60, 960×540P60, 800×448P60, 720×480P60, 640×360P60, 640×480P60, 320×176P60, 1080x1920P60 Sub Stream: YUY2/NV12: 640×360P30,640×480P30,320×176P30 MJPEG/H.264/H.265: 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 720×480P30, 640×360P30, 640×480P30, 320×176P30, 1080x1920P30 |
||
Digital Zoom | 10 X | ||
Accessories | Power Supply, RS232 Control Cable, USB3.0 Cable, Remote Controller, User Manual |
