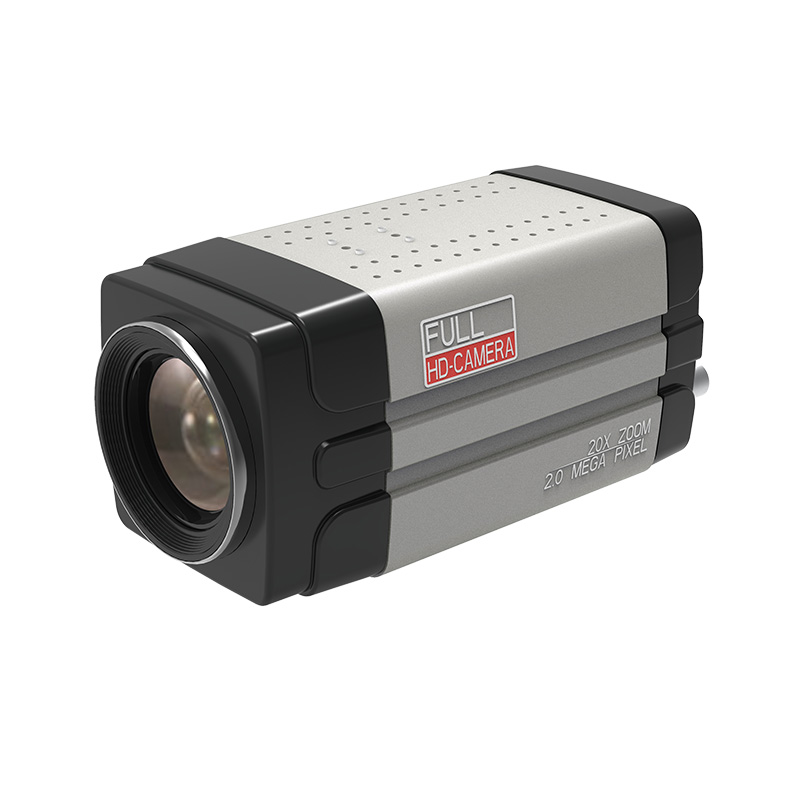

The UV1201 Full HD Box Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
UV1201 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
4. Multiple audio compression standards:
Support AAC, MP3, G.711A audio compression;
5. Audio input interface:
Support 8000, 16000, 32000, 44100, 48000 sampling frequency, support AAC, MP3, G.711A audio coding.
Support ONVIF, RTSP, RTMP, GB/T28181 protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)；RTP multicast mode and network full command VISCA control protocol.
Technical Specifications:
| Model | UV1201-S20 | UV1201-T20 |
| 1080P Box Camera | ||
| Optical Zoom |
20X f＝5.5～110mm |
20X f＝4.7～94mm |
| Viewing Angle | 3.3°（N）～54.7°（W） | 2.9°（N）～55.4°（W） |
| Iris Value | F1.6 ～ F3.5 | F1.6 ～ F3.5 |
| Image Sensor | 1/2.8 inch high quality CMOS sensor | 1/2.8 inch high quality CMOS sensor |
|
Effective Pixel |
2.07M 16:9 | 2.07M 16:9 |
| Video Signal | HDMI/SDI | |
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/30/25 /59.94/29.97 | ||
| Digital Zoom | 10x | |

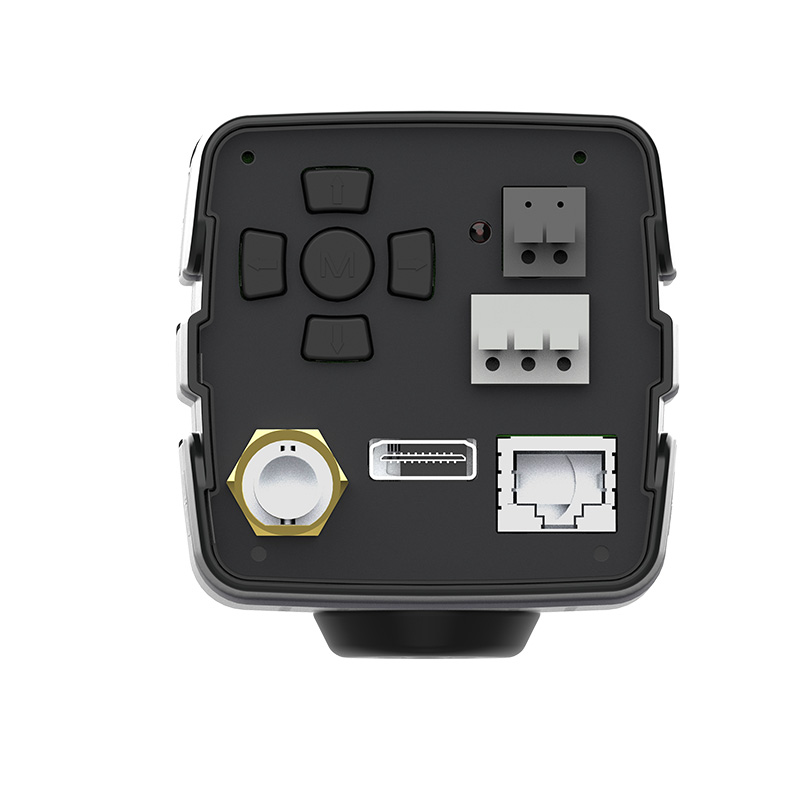

| Interface |
UV1201：HDMI、 SDI、LAN、RS485 UV1201A：SDI、LAN、A-IN、RS485 |
|
| Accessory | 12V/1A power supply、user manual | |
