Minrray as a professional UV950A Series NDI® Full HD PTZ Camera manufacturer, you can rest assured to buy UV950A Series NDI® Full HD PTZ Camera from our factory and we will offer you the best after-sale service and timely delivery.
Full HD, Wide View Angle, Multiple Video Interfaces. Multiple Protocols
UV950A Series NDI Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Factory Directly Supply Quality UV950A Series NDI® Full HD PTZ Camera made in China. Minrray is a UV950A Series NDI® Full HD PTZ Camera manufacturer and supplier in China. UV950A Series NDI Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Key Features
|
1. Superb High-definition Image UV950A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
UV950A has 12X/20X/30X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.
3. Exposure dynamic control algorithm: a unique dynamic exposure control algorithm based on the human eye model, so that the picture exposure is uniform and the sense of layering is strong. Using the industry's most advanced WDR (Wide Dynamic Range) CMOS sensor, combined with exposure dynamic control algorithm processing, it can clearly capture and image all scenes in environments with strong contrast between light and dark (such as backlighting).
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5. Wide-range, Quiet and Quick Pan/Tilt Mechanism
|
|
Technical Specification
| Model | UV950E0 | UV950E2 | ||
| 1080P PTZ Camera | ||||
| Optical Zoom |
12X f=3.9～46.8mm |
20X f＝5.5～110mm |
||
| Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） | ||
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 | ||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor | ||
| Effective Pixel | 2.07M, 16:9 | 2.07M, 16:9 | ||
| Video Signal | HDMI/SDI | |||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | ||||
| U2 | ||||
|
320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
||||
| Digital Zoom | 10X | |||

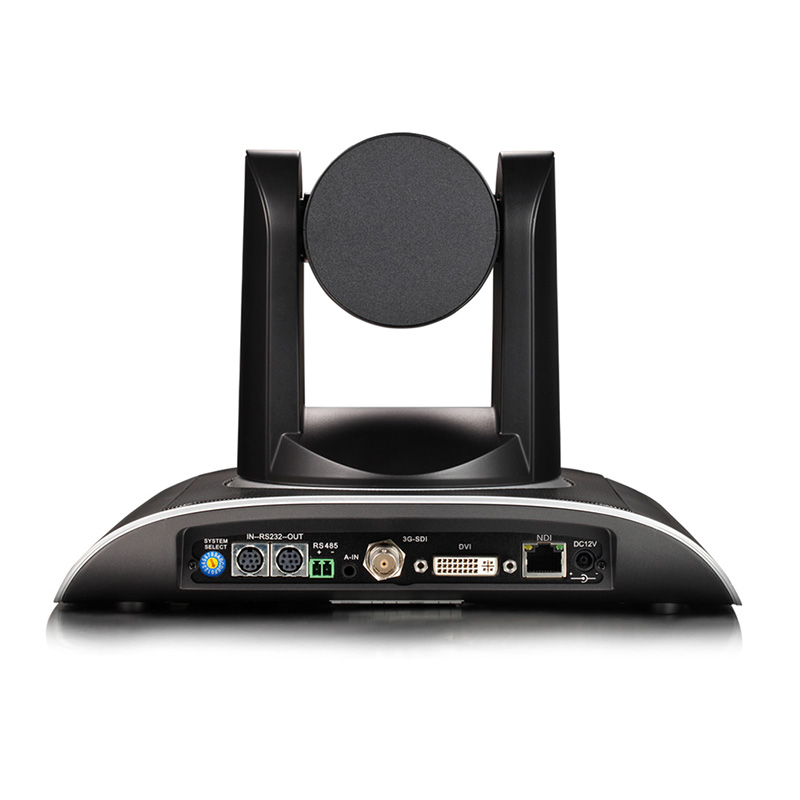

| Interface | HDMI、SDI、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、RS485、Rotary Dip Switch、DC12V Power Supply | |||
| Accessory |
Power Adapter, RS232 Cable, Remote Control, User Manual |
|||
| Model | UV950F0 | UV950F1 | ||
| 1080P PTZ Camera | ||||
| Optical Zoom |
12X f=3.9～46.8mm |
20X f＝5.5～110mm |
||
| Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） | ||
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 | ||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor | ||
| Effective Pixel | 2.07M 16:9 | 2.07M 16:9 | ||
| Video Signal | HDMI | |||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | ||||
| U3 | ||||
|
1）U3：1920X1080P60/50/30/25、1280X720P60/50/30/25、960X540P30、640X360P30、640X480P30、352X288P30、800*600P30 2）U3 Compatible with U2：960X540P30、640X360P30、1280X720P10/15、720X576P50、720X480P60、640X480P30、352X288P30、800*600P30 |
||||
| U2 | ||||
|
320x240/352x288/640x480/704x576/720x480/720x576/640x360/800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
||||
| Interface | HDMI、USB3.0、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、DC12V Power Spply | |||
| Accessory | Power Adapter, RS232 Cable, Remote Control, User Manual | |||
