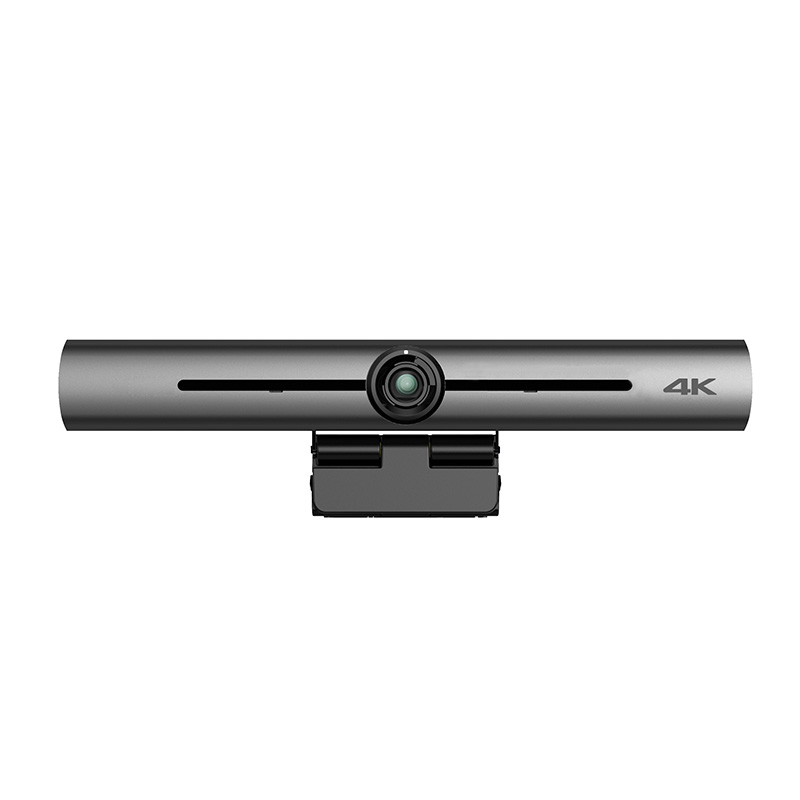

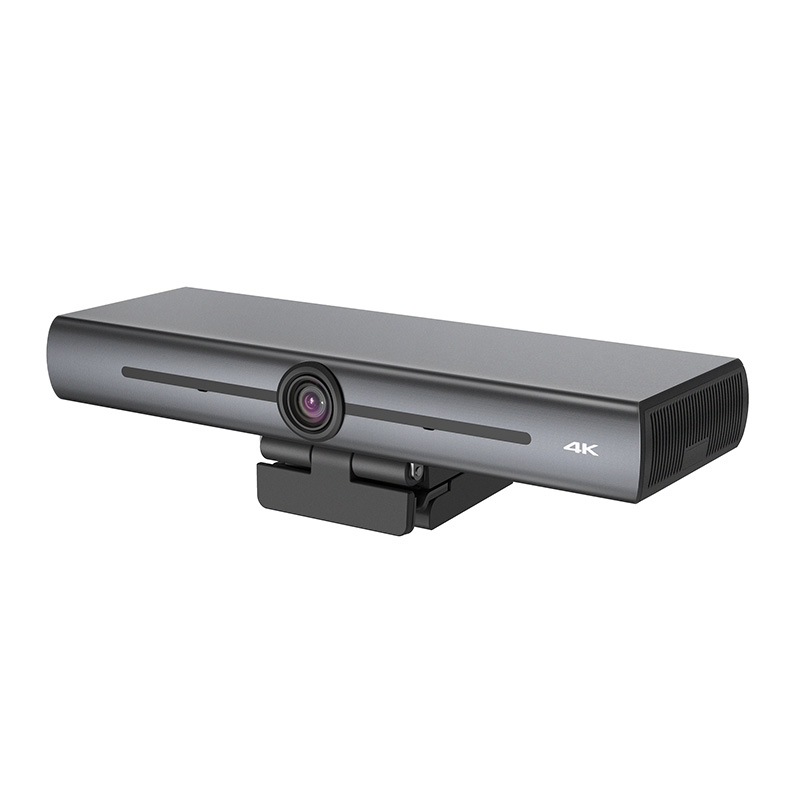

Auto Framing 4K EPTZ Camera MG200C has perfect functions and superior performance, which employs advanced ISP processing algorithms so as to provide vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color rendition. Easy and convenient to install and maintain, stable and reliable.
Features:
1. Ultra HD 4K Resolution:
1/2.5 inch high quality CMOS sensor. Resolution is up to 4K with frame rate up to 30fps (MJPG) or 4K@15fps (H.264/H.265); compatible with 1080P and 720P.
2. ePTZ:
Support ePTZ and 4X digital Zoom
3. Built-in MIC:
Built-in two omni-directional MIC pickups (3M distance); with unique noise suppression algorithm;
4. Dual stream:
USB supports both main code stream and sub-code stream output;
5. Auto Framing:
Employing superior face detection algorithm to intelligently and automatically frames all the people in the meeting
6. Wide FOV:
83°/ 100° /120° wide angle and small distortion lens options
7. Low Noise and High SNR:
Low Noise CMOS effectively ensure high SNR of camera video, even in low light condition.
8. Easy to Use:
No need to download driver; USB output interface; Plug and play.
Technical Specifications:
| Model | MG200C-1 | MG200C-2 | MG200C-3 |
| AI Auto Framing Webcam | |||
| Viewing Angle | 95°（D）/83°（H）/46°（V） | 115°（D）/100°（H）/56°（V） | 138°（D）/120°（H）/68°（V） |
| Focus | f=3.24mm | f=2.26mm | F1.89mm |
| Iris Value | F2.1 | F1.8±5% | F2.0±5% |
| Image Sensor |
1/2.8 inch high quality 4K CMOS sensor |
1/2.8 inch high quality 4K CMOS sensor | 1/2.8 inch high quality 4K CMOS sensor |
| Effective Pixel | 8.28M 16:9 | 8.28M 16:9 | 8.28M 16:9 |
| Video Signal |
MJPG：3840x2160/2560x1440/1920x1080/1600x896/1280x720/1024x576/960x540/800x600/800x448/720x576/720x480/640x480/ 640x360/480x270/352x288/320x240@30/25/20/15/10/5fps |
||
|
H264：3840x2160/2560x1440/1920x1080/1600x896/1280x720/1024x576/960x540/800x600/800x448/720x576/720x480/640x480/ 640x360/480x270/352x288/320x240@30/25/20/15/10/5fp |
|||
| YUY2：1920x1080/1280x720/1024x576/800x600/800x448/640x480/640x360/480x270/320x180@30/25/20/15/10/5fp | |||
| NV12：1920x1080/1280x720/1024x576/800x600/800x448/640x480/640x360/480x270/320x180@30/25/20/15/10/5fp | |||
| Digital Zoom | 10x | ||
| Interface | USB3.0（TypeB）、TF card slot | ||
| 随机附件 |
USB3.0 cable, remote control, user manual |
||
