Full HD, Wide View Angle, Multi-protocols, Multiple Video Interfaces, Multi-lens
The UV510A series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
UV510A series Full HD PTZ Camera
The UV510A series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Key Features
|
1. Superb High-definition Image UV510A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.

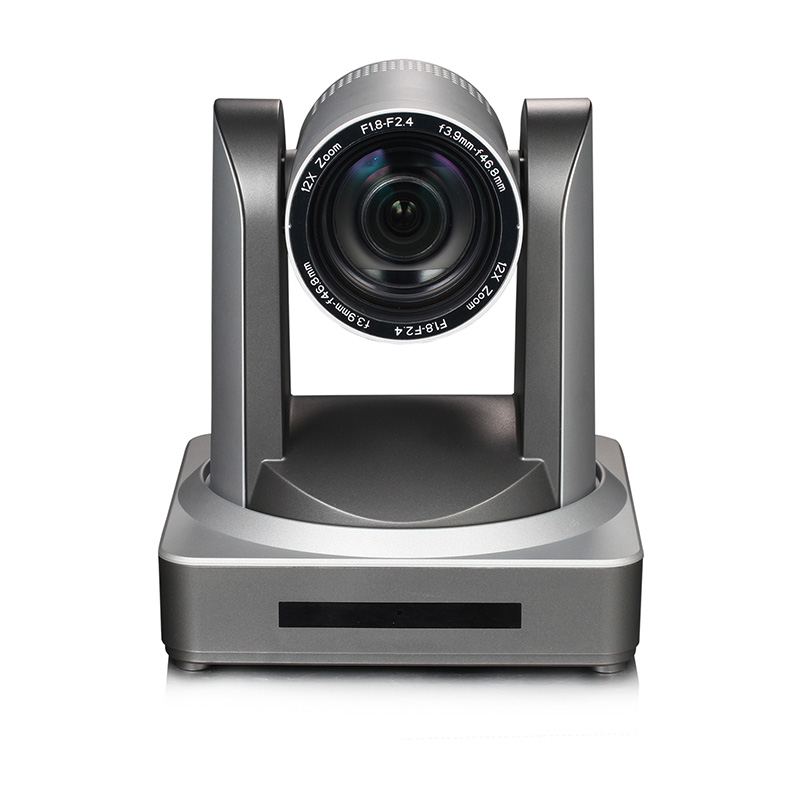

12X, 20X and other optical zoom lens for options. The lens adopts 83.7° wide angle without distortion.
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
6. Extremely Quiet PTZ
|
|
Technical Specification
| Model | UV510E0 | UV510E2 | ||
| 1080P PTZ Camera | ||||
| Optical Zoom |
12X f=3.9～46.8mm |
20X f＝5.5～110mm |
||
| Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） | ||
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 | ||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor | ||
| Effective Pixel | 2.07M, 16:9 | 2.07M, 16:9 | ||
| Video Signal | HDMI/SDI | |||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | ||||
| U2(support UVC protocol) | ||||
|
320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
||||
| Digital Zoom | 10X | |||

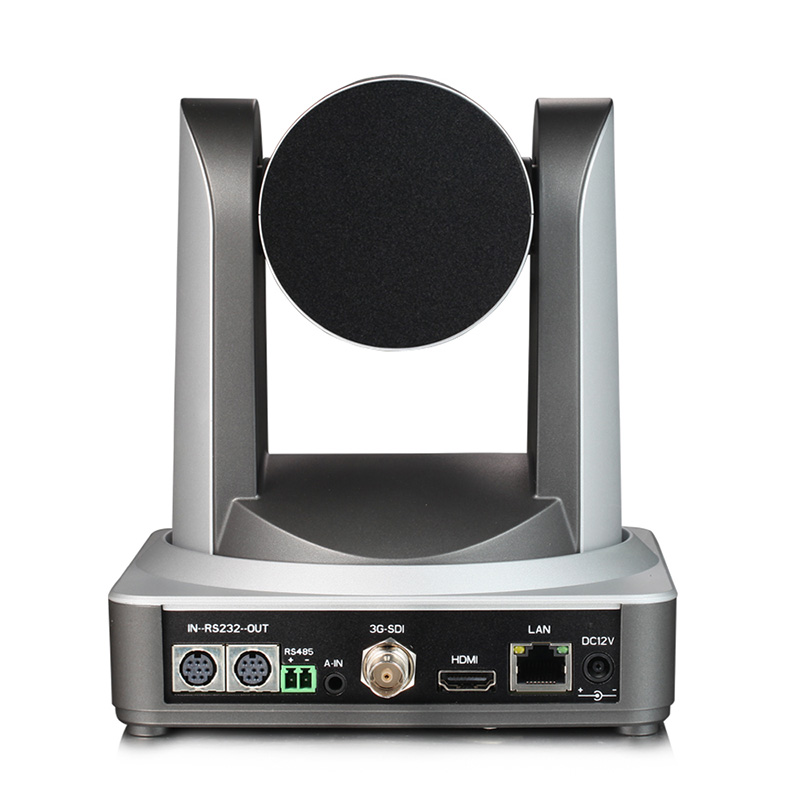

| Interface | HDMI、SDI、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、RS485、DC12V Power Supply | |||
| Accessory |
Power Adapter, RS232 Cable, Remote Control, User Manual |
|||
| Model | UV510F0 | UV510F1 | ||
| 1080P PTZ Camera | ||||
| Optical Zoom |
12X f=3.9～46.8mm |
20X f＝5.5～110mm |
||
| Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） | ||
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 | ||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor | ||
| Effective Pixel | 2.07M 16:9 | 2.07M 16:9 | ||
| Video Signal | HDMI | |||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | ||||
| U3(support UVC protocol) | ||||
|
1）U3：1920X1080P60/50/30/25、1280X720P60/50/30/25、960X540P30、640X360P30、640X480P30、352X288P30、800*600P30 2）U3 Compatibke with U2：960X540P30、640X360P30、1280X720P10/15、720X576P50、720X480P60、640X480P30、352X288P30、800*600P30 |
||||
| U2(support UVC protocol) | ||||
|
320x240/352x288/640x480/704x576/720x480/720x576/640x360/800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
||||

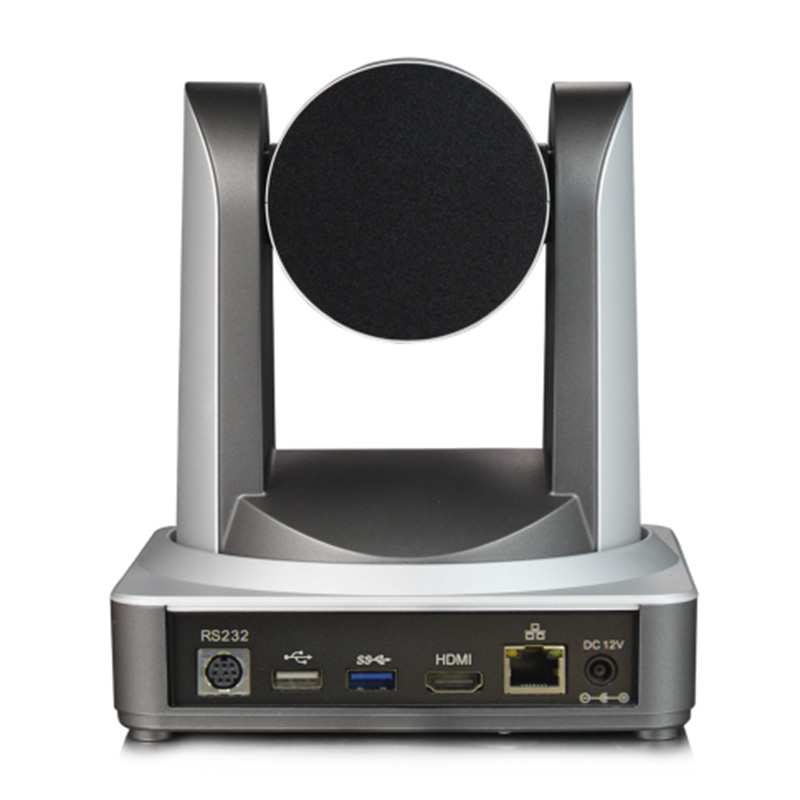

| Interface | HDMI, USB3.0, LAN, USB2.0, A-IN, RS232-IN, RS232-OUT, DC12V Power Supply | |||
| Accessory | Power Adapter, RS232 Cable, Remote Control, User Manual | |||
