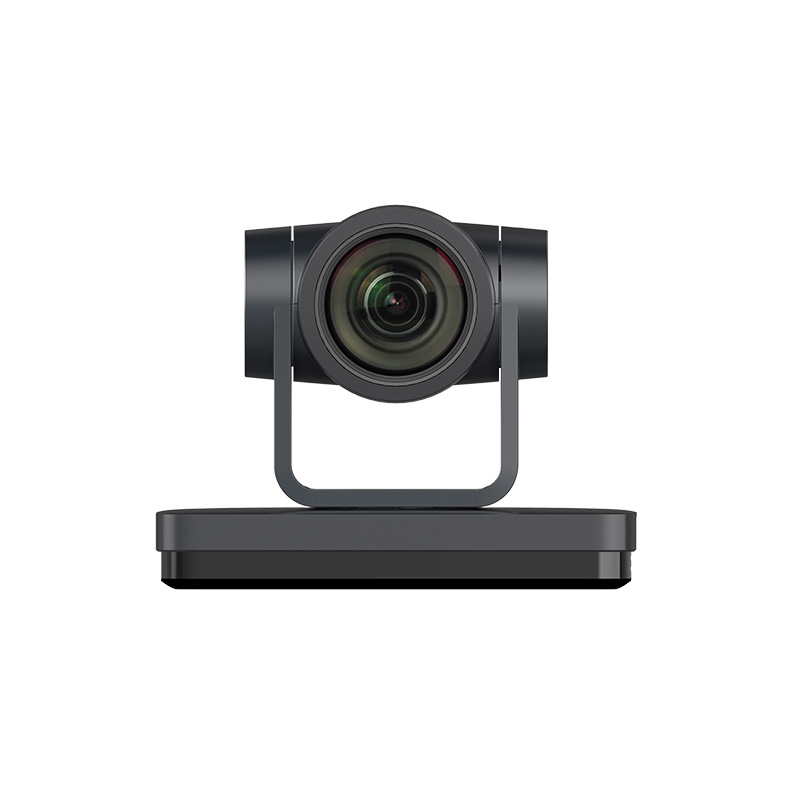

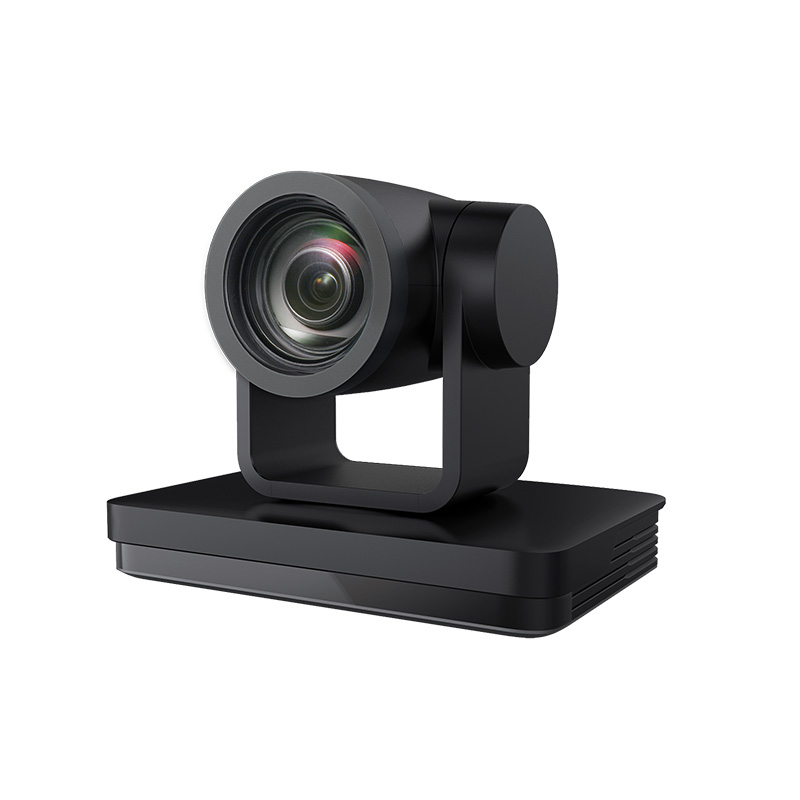

UV570 series Full HD PTZ Camera
The UV570 series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
Key Features
1. Superb High-definition Image
UV570 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
2. Multiple optical lens
12X, 20X optical zoom lens for selection; 5X lens has 83 degree wide angle with little distortion.
3. Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
4. Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5. USB3.0 supports dual code streams
Supports both main and sub-code streams output simultaneously; support YUY2, MJPEG, H.264, NV12, H.265 video encoding format.
6. Multiple Control Protocols
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
7. Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
8. Multiple Preset
Support 255 preset positions (the remote controller is set to 10preset positions).
Technical Specifications
| Model | UV570B3 | UV570B4 | UV570D0 | UV570D1 |
| 1080P FHD PTZ Camera | ||||
| Optical Zoom |
12X f=3.9～46.8mm |
20X f＝5.2～98mm |
12X f=3.9～46.8mm |
20X f＝5.2～98mm |
| FOV(Horizontal) | 6.3°（N）72.5°（W） | 3.2° （N）56°（W） | 6.3°（N）72.5°（W） | 3.2° （N）56°（W） |
| Iris Value | F1.8 ～ F2.4 | F1.5 ～ F3.0 | F1.8 ～ F2.4 | F1.5 ～ F3.0 |
| Image Sensor | 1/2.8 Inch CMOS Sensor | 1/2.8 Inch CMOS Sensor | 1/2.8 Inch CMOS Sensor | 1/2.8 Inch CMOS Sensor |
| Effective Pixels | 2.07M 16:9 | 2.07M 16:9 | 2.07M 16:9 | 2.07M 16:9 |
| Video Signal | HDMI/SDI | HDMI | ||
|
1080P60、1080P50、1080P30、1080P25、720P60、720P50、 1080P59.94、1080P29.97、720P59.94 |
1080P60、1080P50、1080P30、1080P25、720P60、720P50、 1080P59.94、1080P29.97、720P59.94 |
|||
| USB3.0 | USB3.0 | |||
|
Main Stream：YUY2/NV12：1920×1080/1280×720/1024×576/800×600/800 ×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps MJPG/H264：1920×1080/1600×896/1280×720/1024×576/960× 540/800×600/800×448/720×576/720×480/640×360/640×480/480× 270/352×288/320×240@30/25/20/15/10/5fps |
Main Stream: YUY2/NV12：1920×1080/1280×720/1024×576/800×600/800 ×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps MJPG/H264：1920×1080/1600×896/1280×720/1024×576/960× 540/800×600/800×448/720×576/720×480/640×360/640×480/480× 270/352×288/320×240@30/25/20/15/10/5fps |
|||
|
Sub Stream：YUY2/NV12：1920×1080/1280×720/1024×576/800×600/800 ×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps MJPG/H264：1920×1080/1600×896/1280×720/1024×576/960× 540/800×600/800×448/720×576/720×480/640×360/640×480/480× 270/352×288/320×240@30/25/20/15/10/5fps |
Sub Stream：YUY2/NV12：1920×1080/1280×720/1024×576/800×600/800 ×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps MJPG/H264：1920×1080/1600×896/1280×720/1024×576/960× 540/800×600/800×448/720×576/720×480/640×360/640×480/480× 270/352×288/320×240@30/25/20/15/10/5fps |
|||
| Digital Zoom | 10x | |||
| AI Function | Real-time Tracking, Zone Tracking | |||
| Back Panel |

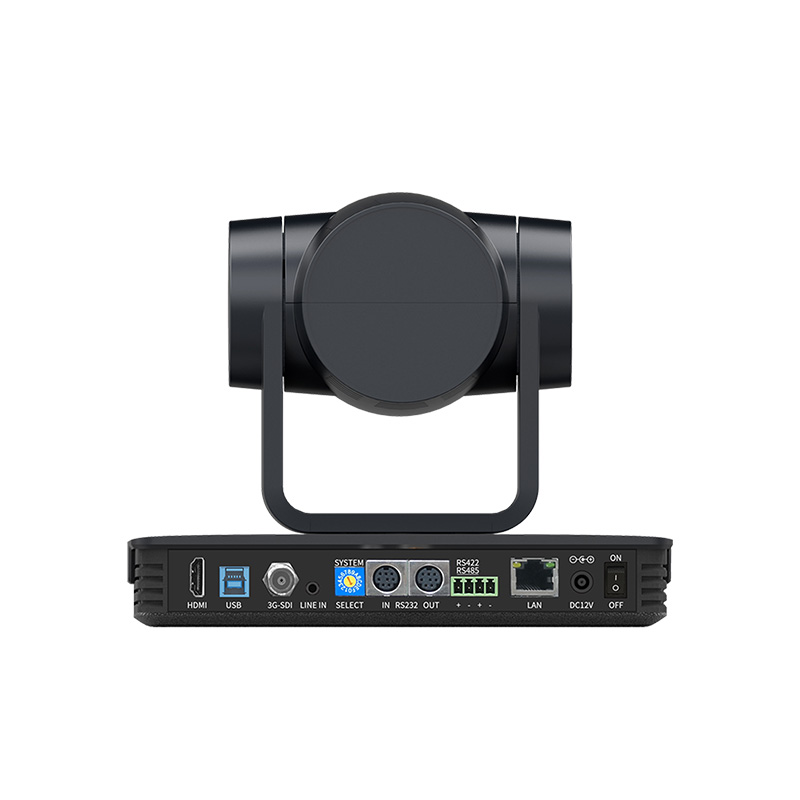

HDMI、LAN(POE)、USB3.0（Type B，compatible with USB2.0）、SDI、A-IN 、RS232-IN、RS232-OUT、RS422（compatible with RS485）、Rotary Dip Switch、 DC12V Power Supply、Power Switch |

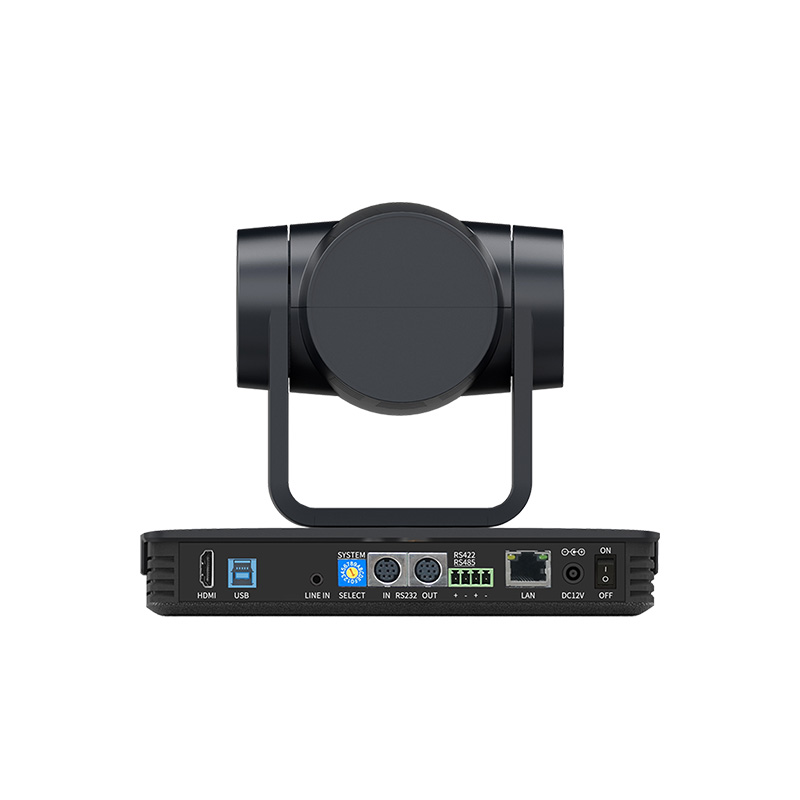

HDMI、LAN(POE)、USB3.0（TypeB，compatible with USB2.0）、A-IN、 RS232-IN、RS232-OUT、RS422（compatible with RS485）、Rotary Dip Switch、 DC12V Power Supply、Power Switch |
||
| Accessory |
Power adapter, RS232 cable, USB3.0 cable, reote control, user manual |
Power adapter, RS232 cable, USB3.0 cable, reote control, user manual |
||
| Model | UV570B3 | UV570B4 | UV570E2 | UV570E3 |
| 1080P FHD PTZ Camera | ||||
| Optical Zoom |
12X f=3.9～46.8mm |
20X f＝5.2～98mm |
12X f=4.1～49.2mm |
20X f＝5.1～94.5mm |
| FOV(Horizontal) | 6.3°（N）72.5°（W） | 3.2° （N）56°（W） | 6.6°（N）70.3°（W） | 3.5°（N）60°（W） |
| Iris Value | F1.8 ～ F2.4 | F1.5 ～ F3.0 | F1.8 ～ F2.68 | F1.8 ～ F2.9 |
| Image Sensor | 1/2.8 Inch CMOS Sensor | 1/2.8 Inch CMOS Sensor | 1/2.8 Inch CMOS Sensor | 1/2.8 Inch CMOS Sensor |
| Effective Pixels | 2.07M 16:9 | 2.07M 16:9 | 2.07M 16:9 | 2.07M 16:9 |
| Video Signal | HDMI/SDI | HDMI/SDI | ||
|
1080P60、1080P50、1080P30、1080P25、720P60、720P50、 1080P59.94、1080P29.97、720P59.94 |
1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | |||
| USB3.0 | U2 | |||
|
Main Stream：YUY2/NV12：1920×1080/1280×720/1024×576/800×600/800 ×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps MJPG/H264：1920×1080/1600×896/1280×720/1024×576/960× 540/800×600/800×448/720×576/720×480/640×360/640×480/480× 270/352×288/320×240@30/25/20/15/10/5fps |
320x240/352x288/640x360/640x480/704x576/704x480/720x576/ 800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
|||
|
Sub Stream：YUY2/NV12：1920×1080/1280×720/1024×576/800×600/800 ×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps MJPG/H264：1920×1080/1600×896/1280×720/1024×576/960× 540/800×600/800×448/720×576/720×480/640×360/640×480/480× 270/352×288/320×240@30/25/20/15/10/5fps |
||||
| Digital Zoom | 10x | |||
| Back Panel |
HDMI、LAN(POE)、USB3.0（Tyoe B，compatible with USB2.0）、SDI、A-IN 、RS232-IN、RS232-OUT、RS422（compatible with RS485）、Rotary Dip Switch、 DC12V Power Supply、Power Switch |
HDMI、SDI、LAN(POE)、USB2.0、A-IN、RS232-IN、 RS232-OUT、RS485、Rotary Dip Switch、DC12V Power Supply |
||
| Accessory |
Power adapter, RS232 cable, USB3.0 cable, reote control, user manual |
Power adapter, RS232 cable, USB3.0 cable, reote control, user manual | ||
