Full HD, Wide View Angle, Multiple Video Interfaces. Multiple Protocols
UV950A series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

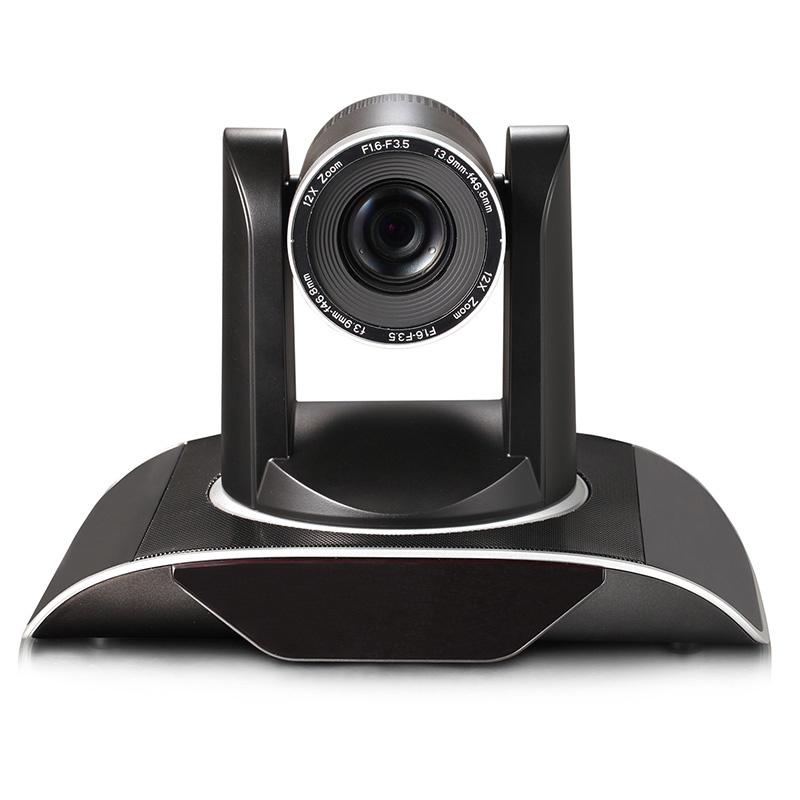

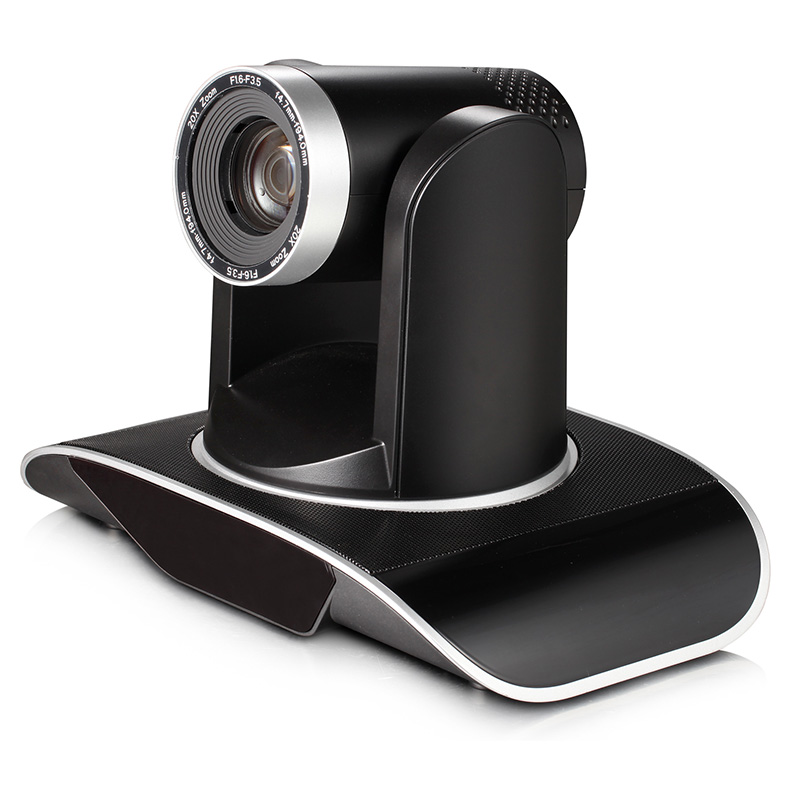

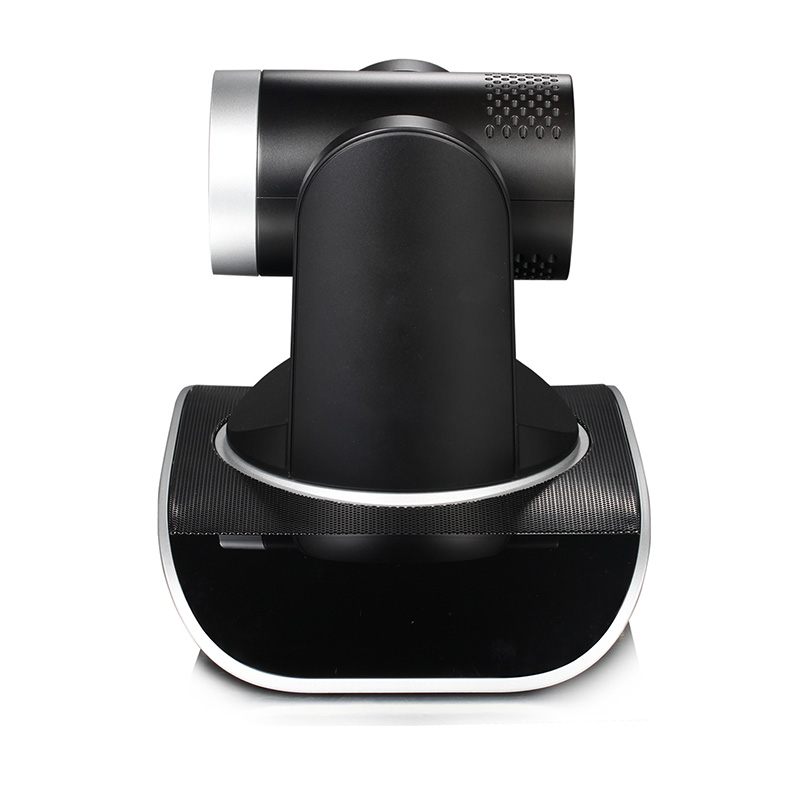

UV950A Series Full HD PTZ Camera
Full HD, Wide View Angle, Multiple Video Interfaces. Multiple Protocols
UV950A series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Key Features
|
1. Superb High-definition Image UV950A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
UV950A has 12X/20XX optical zoom lens for options.
3. Exposure dynamic control algorithm: A unique dynamic exposure control algorithm based on the human eye model, so that the picture exposure is uniform and the sense of layering is strong. The industry's most advanced WDR (Wide Dynamic Range) CMOS sensor, combined with exposure dynamic control algorithm processing, it can clearly capture and image all scenes in environments with strong contrast between light and dark (such as backlighting).
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
Support DVI（HDMI）,HDMI, SDI, USB2.0, USB3.0 ,Wired LAN, Wirele   ss LAN (5G WiFi module). SDI supports to transmit 100 meters under the 1080P60 format.
|
|
Technical Specification
| Model | UV950E0 | UV950E2 | ||
| 1080P PTZ Camera | ||||
| Optical Zoom |
12X f=3.9～46.8mm |
20X f＝5.5～110mm |
||
| Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） | ||
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 | ||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor | ||
| Effective Pixel | 2.07M, 16:9 | 2.07M, 16:9 | ||
| Video Signal | HDMI/SDI | |||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | ||||
| U2 | ||||
|
320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
||||
| Digital Zoom | 10X | |||

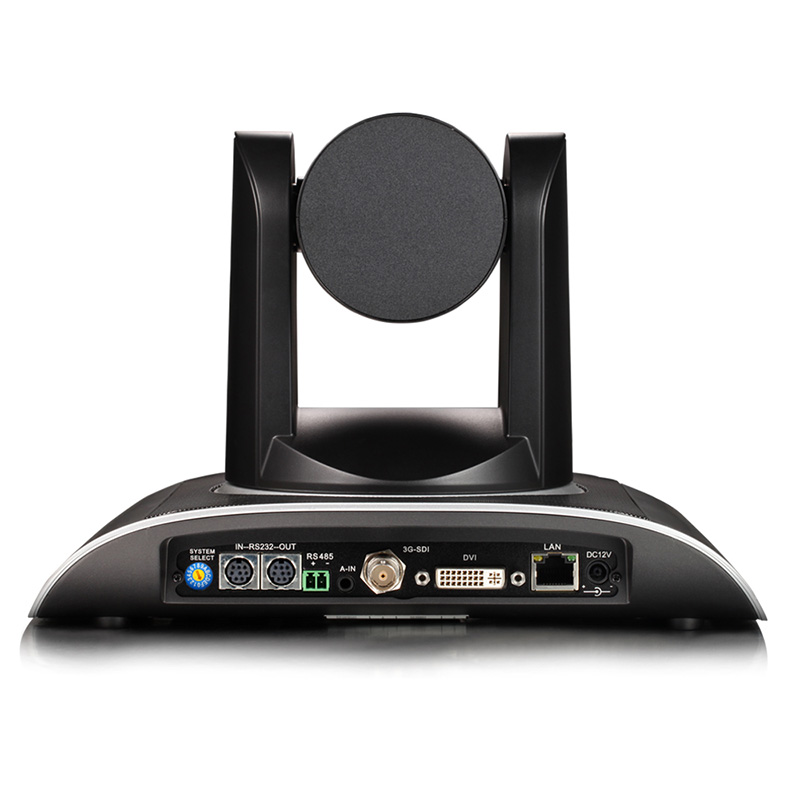

| Interface | HDMI、SDI、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、RS485、Rotary Dip Switch、DC12V Power Supply | |||
| Accessory |
Power Adapter, RS232 Cable, Remote Control, User Manual |
|||
| Model | UV950F0 | UV950F1 | ||
| 1080P PTZ Camera | ||||
| Optical Zoom |
12X f=3.9～46.8mm |
20X f＝5.5～110mm |
||
| Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） | ||
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 | ||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor | ||
| Effective Pixel | 2.07M 16:9 | 2.07M 16:9 | ||
| Video Signal | HDMI | |||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | ||||
| U3 | ||||
|
1）U3：1920X1080P60/50/30/25、1280X720P60/50/30/25、960X540P30、640X360P30、640X480P30、352X288P30、800*600P30 2）U3 Compatible with U2：960X540P30、640X360P30、1280X720P10/15、720X576P50、720X480P60、640X480P30、352X288P30、800*600P30 |
||||
| U2 | ||||
|
320x240/352x288/640x480/704x576/720x480/720x576/640x360/800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
||||

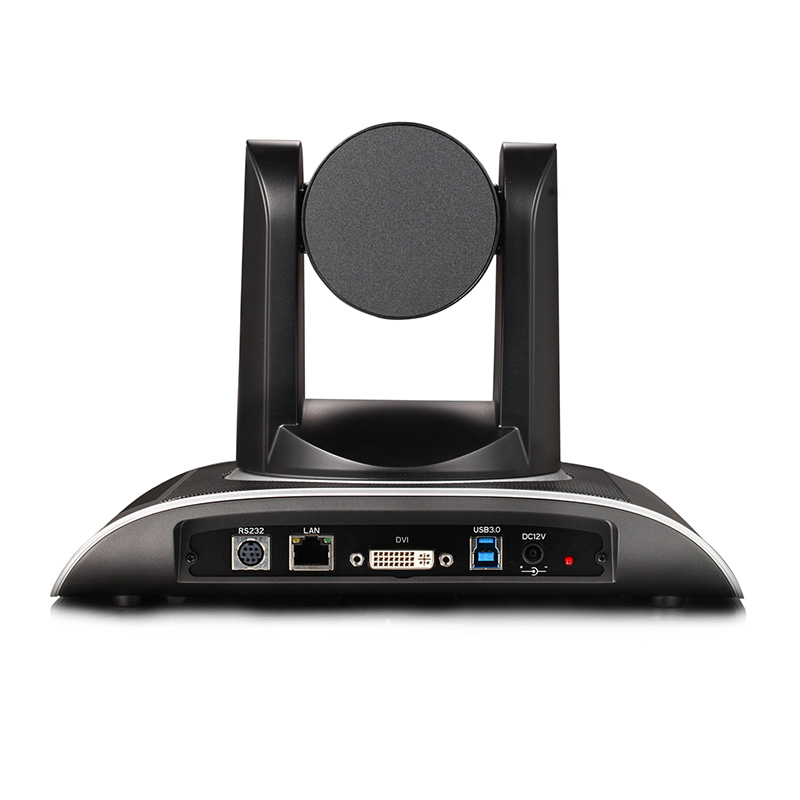

| Interface | HDMI、USB3.0、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、DC12V Power Spply | |||
| Accessory | Power Adapter, RS232 Cable, Remote Control, User Manual | |||
