Full HD, Wide View Angle, Multiple Zoom Lens, Multiple Video Interfaces and Multiple protocols
UV540 Series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

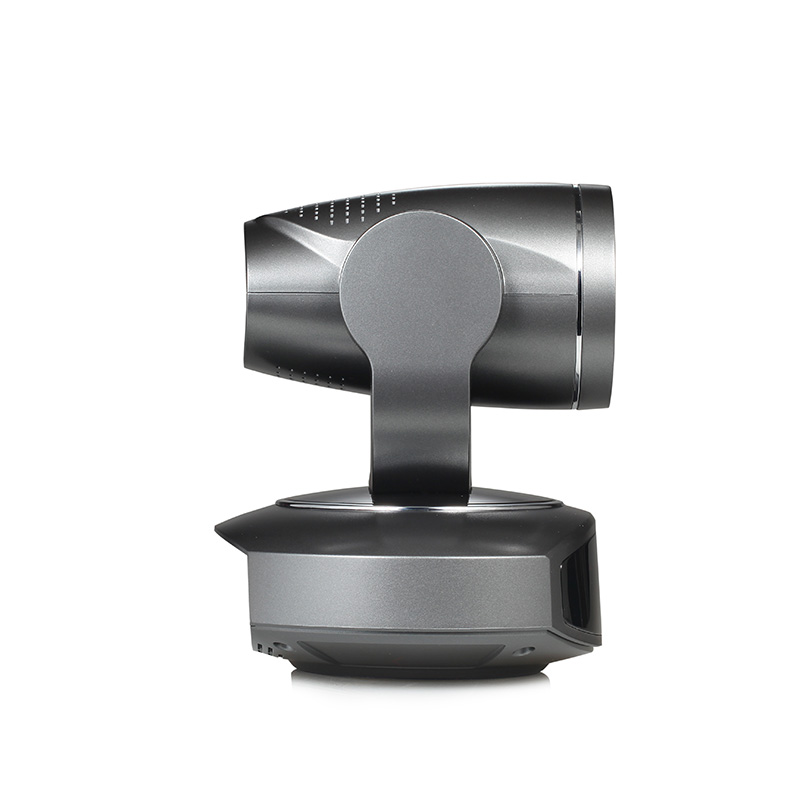

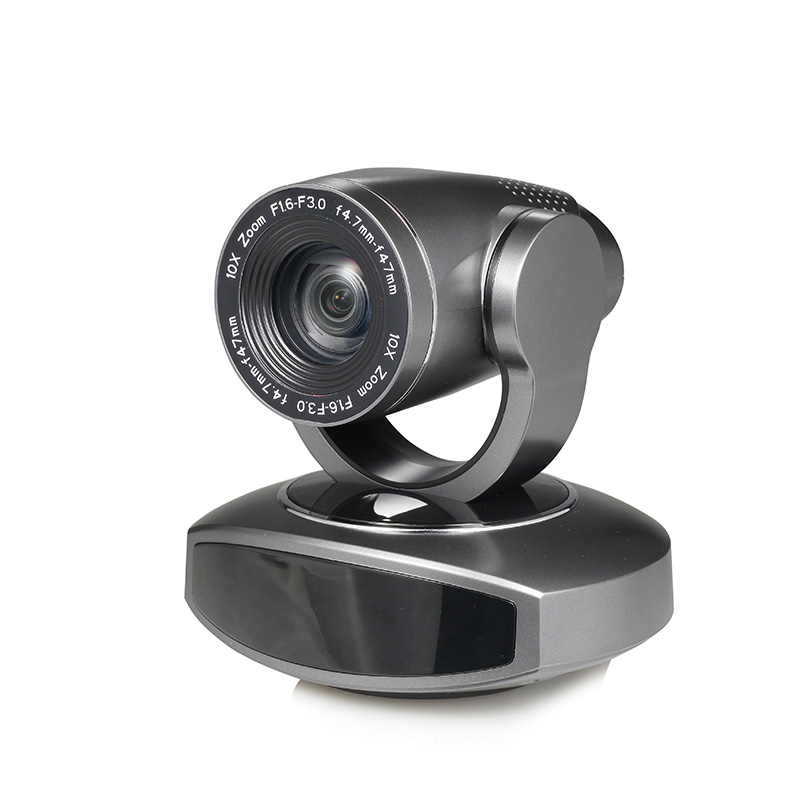

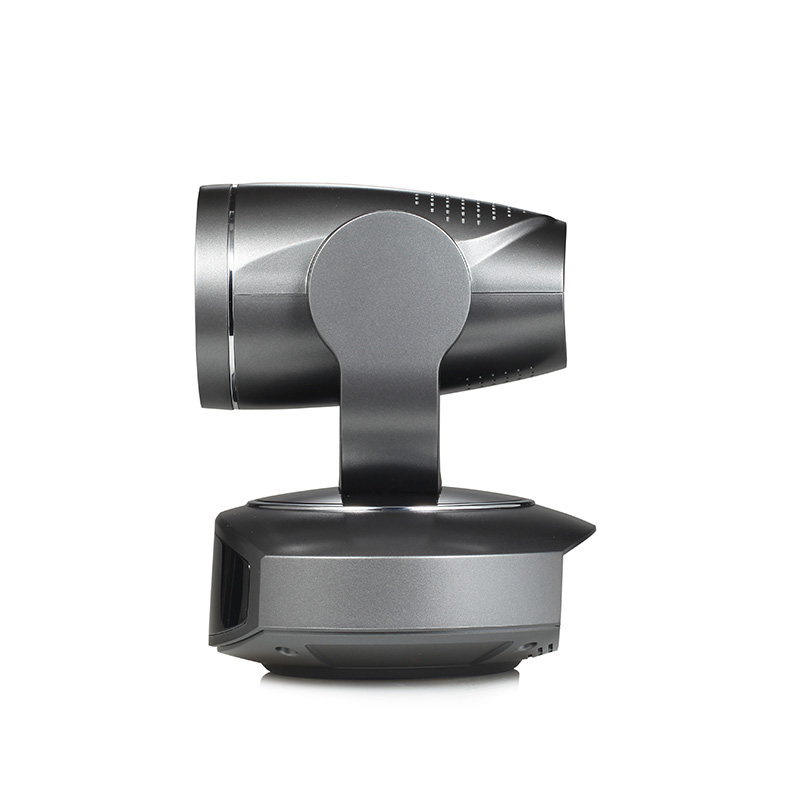

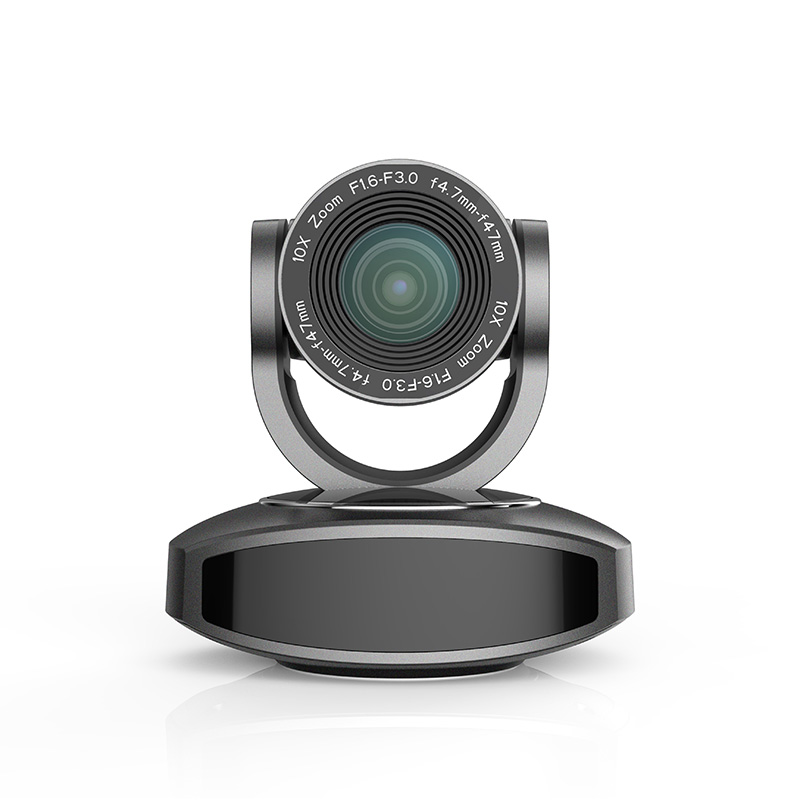

UV540 Series Full HD PTZ Camera
UV540 Series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Key Features
1. Superb High-definition Image
UV540 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
2. Various Optical Zoom Lens
UV540 has 5X/10Xptical zoom lens for options. 5X zoom lens is with 83.7 ° wide view angle without distortion.
3. Trinity image auto-focusing technology
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.
4. Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5. Low-power sleep function:
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode
6. Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, UV540 camera works extremely quiet and moves smoothly.
7. Multiple Preset
Support up to 255 presets (10 presets by remoter )
8. Multiple Network Protocol
Support ONVIF,RTSP,RTMP, GB/T28181 protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)
Technical Specification
| Model | UV540-5 | UV540-10 | ||
| 1080P PTZ Camera | ||||
| Optical Zoom |
5X f＝3.1～15.5mm |
10X f＝4.7～47mm |
||
| Viewing Angle | 20°（N）83.7°（W） | 6.43°（N）60.9°（W） | ||
| Iris Value | F1.8 – F2.8 | F1.6 – F3.0 | ||
| Image Sensor | 1/2.8 inch high quality CMOS sensor | 1/2.8 inch high quality CMOS sensor | ||
| Effective Pixel | 2.07M 16:9 | 2.07M 16:9 | ||
| Video Signal | HDMI/SDI | |||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/30/25/59.94/29.97 | ||||
| U3 | ||||
| U3：1920X1080P60/50/30/25、1280X720P60/50/30/25、960X540P30、640X360P30、640X480P30、352X288P30、960X540P30、800X600P30、800X600P30 | ||||
| U3兼容U2：960X540P30、640X360P30、1280X720P10/15、720X576P50、720X480P60、640X480P30、352X288P30、800X600P30 | ||||
| U2 | ||||
| 176x144/320x240/320x180/352x288/640x480/720x480/720x576/640x360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5 | ||||
| Digital Zoom | 10X（Not available for U2） | |||

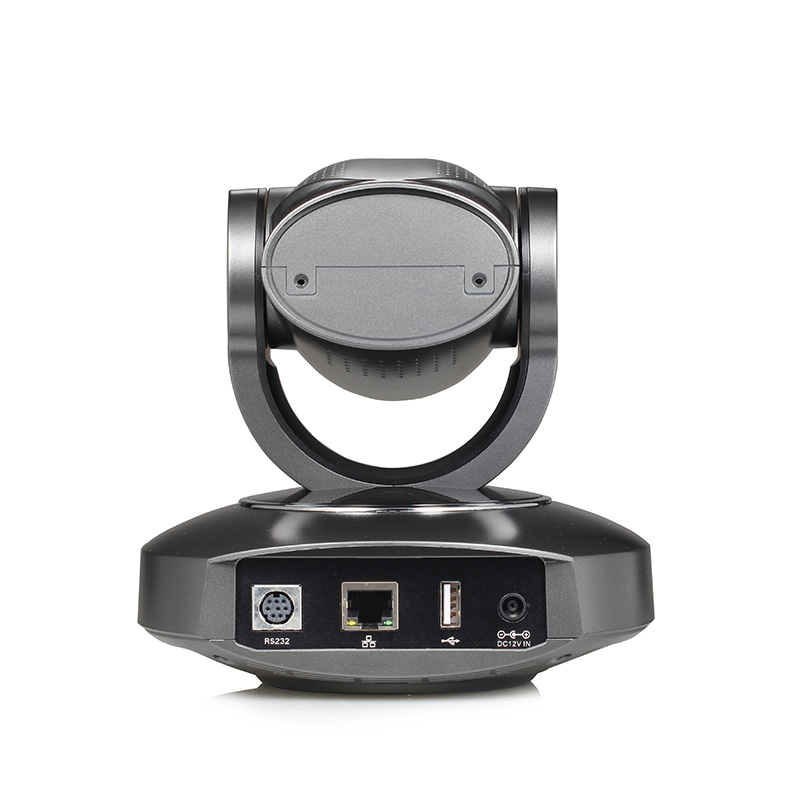

| Interface |
SDI：SDI、LAN、RS232、A-IN HM：HDMI 、LAN、RS232、A-IN U3：USB3.0、LAN、RS232 U2：USB2.0、LAN、RS232 U3HM：USB3、HDMI、LAN、RS232 |
|||
| Accessory |
12V/1.5A Power Supply, Remote Control, User Manual |
|||
