The UV515 series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
UV515 Series Full HD PTZ Camera
The UV515 series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
Key Features
1. Full HD Image
UV515 employs 1/2.9 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 30fps.
2. Multiple Optical Zoom:
3X and 10X optical zoom lens for selection.
3. Leading Auto Focus Technology
Advanced and leading algorithm enables the camera auto focus fast and accurately.
4. Low Noise and High SNR
Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.
5. Multiple Control Protocols
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
6. Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
7. Low-power Sleep Function
Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode
8. Multiple Preset
Up to 255 presets (10 presets for IR remote control)
Technical Specifications
| Model | UV515-3 | UV515-10 | ||
| 1080P PTZ Camera | ||||
| Optical Zoom |
3X f=3.35mm～10.05mm |
10X f=4.34mm～41.66mm |
||
| Viewing Angle | 34.1°～85° | 8.8°～ 66° | ||
| Iris Value | F1.7～3.0 | F1.85 – F2.43 | ||
| Image Sensor | 1/2.9 Inch High Quality CMOS Sensor | 1/2.9 Inch High Quality CMOS Sensor | ||
| Effective Pixel | 2.07M 16:9 | 2.07M 16:9 | ||
| Video Signal | H264/H265/MJPG：1920x1080P@30/25/20/15/10/5fps、1280x720P@30/25/20/15/10/5fps、960x540@30/25/20/15/10/5fps、800x600@30/25/20/15/10/5fps、720x576@30/25/20/15/10/5fps、720x480@30/25/20/15/10/5fps、640x480@30/25/20/15/10/5fps、640x360@30/25/20/15/10/5fps、352x288@30/25/20/15/10/5fps、320x240@30/25/20/15/10/5fps | |||
| YUY2：1280x720@10/5fps、800x600@10/5fps、640x480@30/25/20/15/10/5fps、640x360@30/25/20/15/10/5fps | ||||
| Digital Zoom | 10X | |||

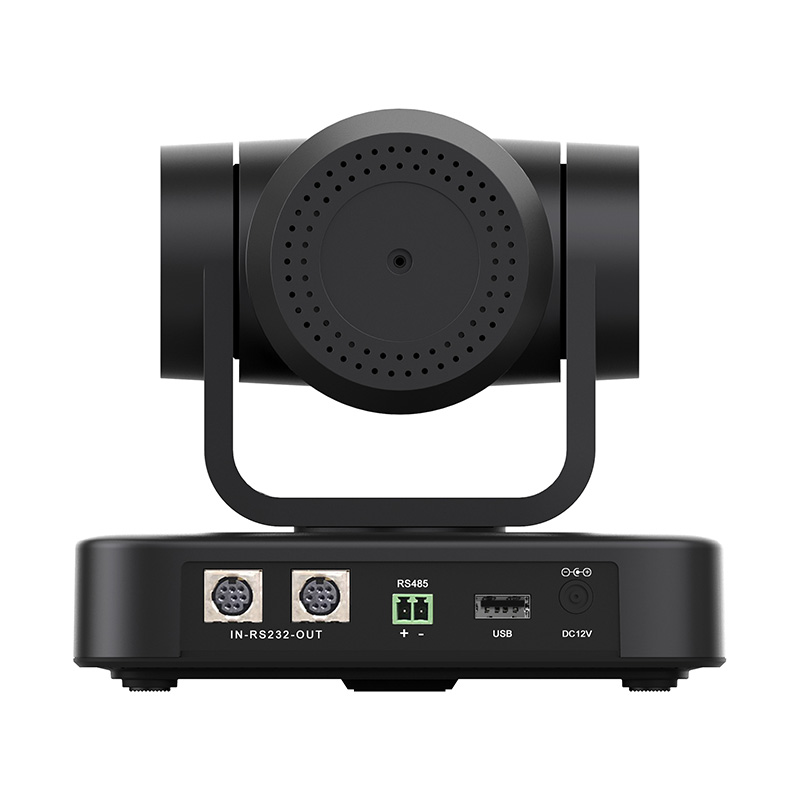

| Interface | USB2.0(support UVC protocol)、RS232、RS485 | |||
| Accessory |
Power Adapter, Remote Control, USB2.0 Cable, User Manual, Packing List |
|||
